Reducers
In the Reducers category, you will find high-quality mechanical drive components designed to convert speed, torque, and direction of motion in industrial and technical systems. Reducers are a key component in mechanical engineering, automation, robotics, and many industrial applications where controlled and efficient power transmission is required. Our reducers are designed to operate reliably under high loads, reduce wear, and increase equipment efficiency – ensuring longer service life and more stable machine operation.
We offer reliable, high-quality reducers at competitive prices, suitable for professional and industrial use. Our solutions guarantee stable operation under high loads and optimal efficiency, whether for standard or specialized applications.
Subcategories
-

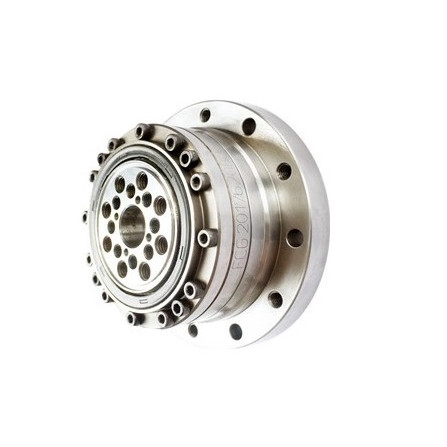

![Harmonic Gearbox Model FCG-AJ 17]()
-
![HLTNC FLF57 Planetary Gearbox for NEMA 23 Stepper Motor – Ratio 1:10 | High Precision and Reliability]()
Planetary Gearbox for NEMA 23 Motor (Ratio 1:10)
€38.04Model: HLTNC FLF57
Type: Planetary gearbox
Compatible motor: NEMA 23 stepper motor (57 mm frame)
Gear ratio: 1:10
Max. input speed: ~2000 rpm
Efficiency: ≈ 90 %
Backlash: ≤ 25 – 30 arc-min
Housing: Metal/cast iron for high durability
Weight: 0.800 kg
-
![Planetary Gearbox PX80 – 1:10 / 1:20 / 1:100 for Servo/Stepper Motor Nema 32]()
Planetary Gearbox for Nema 32 Motor - PX 80
€78.00Technical specifications:
Series: PX80 (NEMA32)
Flange: 80 mm (for servo/stepper motor)
Type: Planetary gearbox
Gear ratios:
1:10
1:20
1:100
Input shaft: 16 mm
Output shaft: 16 mm
Mounting: direct to stepper motor
Input shaft length: ~ 30 mm
Efficiency: up to ~90–95%
Noise level: ≤62 dB
Input speed: up to ~6000 rpm
Backlash: low
Construction: steel gears + aluminium housing
Model
Gear ratio
Application
Rated torque
Length
Weight
PX80 - 1:10
Medium
Balance between speed and torque
~50–80 Nm
86 mm
1.550 kg
PX80 - 1:20
High
Greater force and better control
~80–100 Nm
95 mm
1.900 kg
PX80 - 1:100
Very high
Maximum torque and precision
up to 300 Nm
110 mm
2.300 kg
-
![Planetary Gearbox PX86 – 1:5 / 1:10 / 1:20 / 1:100 for NEMA34]()
Planetary Gearbox for Nema 34 Motor - PX 86
€66.00Technical specifications:
Series: PX86 (NEMA34)
Flange: 86 mm (for servo/stepper motor)
Type: Planetary gearbox
Gear ratios:
1:5
1:10
1:20
1:100
Input shaft: 14 mm
Output shaft: 14 mm
Mounting: direct to stepper motor
Input shaft length: ~ 30mm
Efficiency: up to ~90–95%
Backlash: low
Construction: steel gears + aluminium housing
Model
Gear ratio
Application
Rated torque
Length
Weight
PX86 - 1:5
Low reduction
High speed, moderate torque
~40–60 Nm
80 mm
1.600 kg
PX86 - 1:10
Medium
Balance between speed and power
~60–80 Nm
86 mm
1.700 kg
PX86 - 1:20
High
Higher torque
~80–100 Nm
95 mm
2.100 kg
PX86 - 1:100
Very high
Maximum torque, low speed
up to 100 Nm
110 mm
2.750 kg
-
![Worm Gear Reducer NMRV040 – Ratio 1:15 / 1:50 / 1:100]()
Worm Gear Reducer NMRV040 – Ratio 1:15 / 1:50 / 1:100
€49.08Model: NMRV040
Type: Worm Gear Reducer
Ratio: 1:15 / 1:50 / 1:100
Mounting Type: Flange Mount
Housing: Aluminium Alloy (ADC12) – anodised, lightweight and robust
Input Shaft Diameter: Ø14 mm
Output Shaft Diameter: Ø18 mm
Compatible Motors: NEMA 34 and Induction Motors
Max. Input Power: 0.37 – 0.75 kW
Input Speed: 1400 rpm (standard)
Operating Temperature: -10°C ~ +60°C
Noise: ≤ 50 dB
Lubrication: Oil bath with NLGI-2 grease
Gear Material: Hardened Steel + Bronze Worm Wheel
Colour: Silver Aluminium with protective coating
Weight: 2.00 kg
