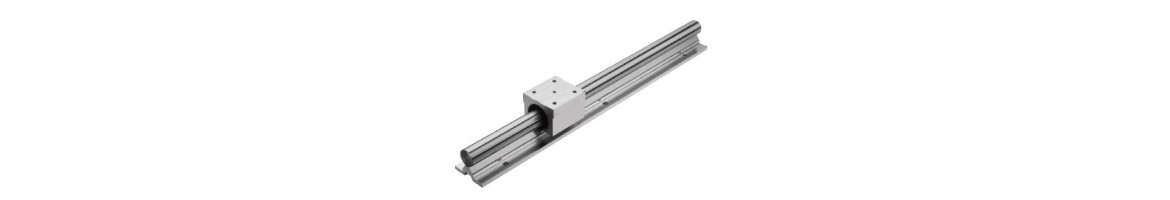

Rails

Diameter – Ø 10

E – 16

h – 18

B – 32

H – 13

T – 4

F – 12.5

X – 4.7

Y – 8.5

C – 22

P – 100

N – 20

S1 – Ø 4.5

S2 d1xd2xi – 5x9x5

Approximate weight per 1 m.: 1.300 kg

Maximum length - 4 m.

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

Diameter – Ø 16

E – 20

h – 25

B – 40

H – 17.8

T – 5

F – 18.5

X – 8

Y – 11.7

C – 30

P – 150

N – 20

S1 – Ø 5.5

S2 d1xd2xi – 5.5 x 9.5 x 5.4

Maximum length - 4 m.

Cutting accuracy: ≤ 1 mm

Approximate weight per 1 m.: 2.400 kg.

Rails under 20 cm are not cut!

Diameter – Ø 20

E – 22.5

h – 27

B – 45

H – 17.7

T – 5

F – 19

X – 8

Y – 10

C – 30

P – 150

N – 20

S1 – Ø 5.5

S2 d1xd2xi – 5.5 x 9.5 x 5.4

Maximum length - 4 m.

Cutting accuracy: ≤ 1 mm

Approximate weight per 1 m.: 3.250 kg.

Rails under 20 cm are not cut!

Diameter – Ø 25

E – 27.5

h – 33

B – 55

H – 21

T – 6

F – 21.5

X – 8

Y – 12

C – 35

P – 200

N – 25

S1 – Ø 6.6

S2 d1xd2xi – 6.6 x 11 x 6.5

Maximum length - 4 m.

Cutting accuracy: ≤ 1 mm

Approximate weight per 1 m.: 5.0 kg.

Rails under 20 cm are not cut!
