Fittings
-
![Pneumatic Fitting BL Double Female Thread – Brass Connector]()
Pneumatic Female Fitting BL Series – Double Internal Thread
€0.54Model
A
L
S
BL 01-01
G 1/8
18
12
BL 02-01
G 1/4 - 1/8
19
15
BL 02-02
G 1/4
19
15
BL 03-01
G 3/8 - 1/4
20.5
19
BL 03-02
G 3/8 - 1/4
20.5
19
BL 03-03
G 3/8
20.5
19
BL 04-02
G 1/2 - 1/4
22
23
BL 04-03
G 1/2 - 3/8
23
23
BL 04-04
G 1/2
24
23
BL 06-04
G 3/4 - 1/2
25
30
BL 06-06
G 3/4
25
30
BL 10-04
G 1 - 1/2
26
36
BL 10-06
G 1 - 3/4
27
36
BL 10-10
G 1
27.5
36
-
![Pneumatic Fitting BB External Thread – Brass Hex Connector]()
Pneumatic Fitting BB Series – Hex with External Thread
€0.54Model
A
B
C
D
E
BB 02-01
PT 1/4
G 1/8
8.5
4.5
14
BB 03-01
PT 3/8
G 1/8
9.5
4.5
17
BB 03-02
PT 3/8
G 1/4
9.5
4.5
17
BB 04-02
PT 1/2
G 1/4
10.5
4.5
21
BB 04-03
PT 1/2
G 3/8
10.5
4.5
21
BB 06-04
PT 3/4
G 1/2
11.5
5
27
BB 10-04
PT 1
G 1/2
12.5
5.5
34
BB 10-06
PT 1
G 3/4
12.5
5.5
34
-
![BW Pneumatic Fitting Double External Thread – Brass Connector]()
Pneumatic Male Fitting BW Series – Double External Thread
€0.54Model
A
B
C
D
E
F
BW 01-01
PT1/8
PT1/8
7.5
7.5
4.5
10
BW 02-01
PT1/4
PT1/8
8.5
7.5
4.5
14
BW 02-02
PT1/4
PT1/4
8.5
8.5
4.5
14
BW 03-01
PT3/8
PT1/8
9.5
7.5
4.5
17
BW 03-02
PT3/8
PT1/4
9.5
8.5
4.5
17
BW 03-03
PT3/8
PT3/8
9.5
9.5
4.5
17
BW 04-02
PT1/2
PT1/4
10.5
8.5
4.5
21
BW 04-03
PT1/2
PT3/8
10.5
9.5
4.5
21
BW 04-04
PT1/2
PT1/2
10.5
10.5
4.5
21
BW 06-04
PT3/4
PT1/2
11.5
10.5
5
27
BW 06-06
PT3/4
PT3/4
11.5
11.5
5
27
BW 10-04
PT1
PT1/2
12.5
10.5
5.5
34
BW 10-06
PT1
PT3/4
12.5
11.5
5.5
34
BW 10-10
PT1
PT1
12.5
12.5
5.5
34
-

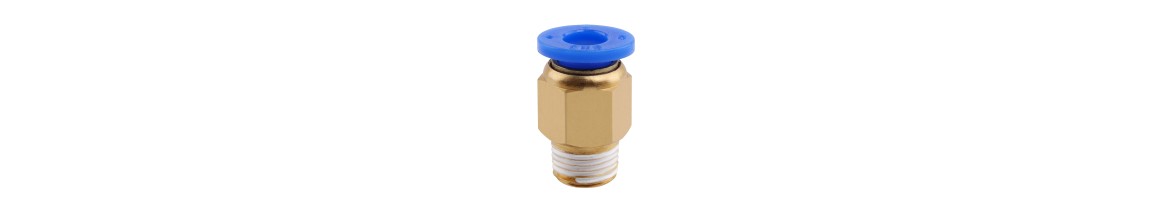

![SPC One-Touch Pneumatic Quick Fitting – Straight with External Thread]()
Pneumatic Quick Fitting SPC Series One-Touch
€0.60Model
ØD
R
A
B
H
SPC 4-GM5
4
M5
4.5
22
10
SPC 4-01
4
1/8"
7
20.5
10
SPC 4-02
4
1/4"
9
19
14
SPC 4-03
4
3/8"
10
20
17
SPC 4-04
4
1/2"
11
21
21
SPC 6-GM5
6
M5
4.5
22.5
12
SPC 6-01
6
1/8"
7
22
12
SPC 6-02
6
1/4"
9
22
14
SPC 6-03
6
3/8"
10
21.5
17
SPC 6-04
6
1/2"
11
23
21
SPC 8-GM5
8
M5
7
23
14
SPC 8-01
8
1/8"
8
27
14
SPC 8-02
8
1/4"
10
25
14
SPC 8-03
8
3/8"
10
22
17
SPC 8-04
8
1/2"
11
23.5
21
SPC 10-01
10
1/8"
8
31
17
SPC 10-02
10
1/4"
10
29
17
SPC 10-03
10
3/8"
10
25
17
SPC 10-04
10
1/2"
11
32.5
21
