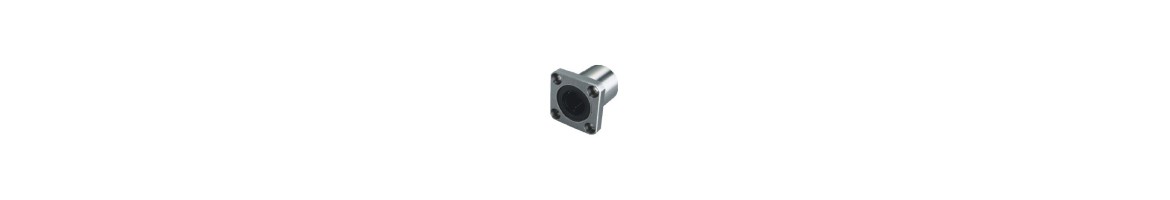

Flanged

Model – LMK8

Ball rows – 4

dr – 8

D – 15

L – 24

D1 – 32

H – 5

PCD – 24

K – 25

W – 21

A – 24

d1 x d2 x h – 3.5 x 6 x 3.1

Eccentricity (max) – 12

Radial clearance (max): -3

Dynamic load – 27 kg

Static load – 39 kg

Weight – 0.037 kg

Model – LMK10

Ball rows – 4

dr – 10

D – 19

L – 29

D1 – 40

H – 6

PCD – 29

K – 30

W – 25

A – 29

d1 x d2 x h – 4.5 x 7.5 x 4.1

Eccentricity (max) – 12

Radial clearance (max): -4

Dynamic load – 37 kg

Static load – 55 kg

Weight – 0.072 kg

Model – LMK12

Ball rows – 4

dr – 12

D – 21

L – 30

D1 – 42

H – 6

PCD – 32

K – 32

W – 27

A – 32

d1 x d2 x h – 4.5 x 7.5 x 4.1

Eccentricity (max) – 12

Radial clearance (max): -4

Dynamic load – 51 kg

Static load – 78 kg

Weight – 0.076 kg

Model – LMK16

Ball rows – 5

dr – 16

D – 28

L – 37

D1 – 48

H – 6

PCD – 38

K – 37

W – 34

A – 31

d1 x d2 x h – 4.5 x 7.5 x 4.1

Eccentricity (max) – 12

Radial clearance (max): -6

Dynamic load – 89 kg

Static load – 139 kg

Weight – 0.180 kg

Model – LMK20

Ball rows – 5

dr – 20

D – 32

L – 42

D1 – 54

H – 8

PCD – 43

K – 42

W – 38

A – 36

F – 24

d1 x d2 x h – 5.5 x 9 x 5.1

Eccentricity (max) – 15

Radial clearance (max): -6

Dynamic load – 88 kg

Static load – 137 kg

Weight – 0.180 kg

Model – LMK25

Ball rows – 6

dr – 25

D – 40

L – 59

D1 – 62

H –

PCD – 51

K – 50

W – 46

A – 40

F – 32

d1 x d2 x h – 5.5 x 9 x 5.1

Eccentricity (max) – 15

Radial clearance (max): -6

Dynamic load – 98 kg

Static load – 157 kg

Weight – 0.290 kg

Model – LMK30

Ball rows – 6

dr – 30

D – 45

L – 64

D1 – 74

H – 10

PCD – 60

K – 58

W – 51

A – 49

F – 35

d1 x d2 x h – 6.6 x 11 x 6.1

Eccentricity (max) – 15

Radial clearance (max): -8

Dynamic load – 157 kg

Static load – 274 kg

Weight – 0.470 kg

Model – LMK8L

Ball rows – 4

dr – 8

D – 15

L – 45

D1 – 32

H – 5

PCD – 24

K – 25

W – 21

A – 24

d1 x d2 x h – 3.5 x 6 x 3.1

Eccentricity (max) – 15

Radial clearance (max): -3

Dynamic load – 43 kg

Static load – 78 kg

Weight – 0.051 kg

Model – LMK25L

Ball rows – 6

dr – 25

D – 40

L – 112

D1 – 62

H – 8

PCD – 51

K – 50

W – 46

A – 40

F – 32

d1 x d2 x h – 5.5 x 9 x 5.1

Eccentricity (max) – 20

Radial clearance (max): -6

Dynamic load – 156 kg

Static load – 314 kg

Weight – 0.470 kg

Model – LMK10L

Ball rows – 4

dr – 10

D – 19

L – 55

D1 – 40

H – 6

PCD – 29

K – 30

W – 25

A – 29

d1 x d2 x h – 4.5 x 7.5 x 4.1

Eccentricity (max) – 15

Radial clearance (max): -4

Dynamic load – 58 kg

Static load – 110 kg

Weight – 0.098 kg

Model – LMK12L

Ball rows – 4

dr – 12

D – 21

L – 57

D1 – 42

H – 6

PCD – 32

K – 32

W – 27

A – 32

d1 x d2 x h – 4.5 x 7.5 x 4.1

Eccentricity (max) – 15

Radial clearance (max): -4

Dynamic load – 81 kg

Static load – 157 kg

Weight – 0.110 kg

Model – LMK16L

Ball rows – 4

dr – 16

D – 28

L – 70

D1 – 48

H – 6

PCD – 38

K – 37

W – 34

A – 31

d1 x d2 x h – 4.5 x 7.5 x 4.1

Eccentricity (max) – 15

Radial clearance (max): -6

Dynamic load – 125 kg

Static load – 239 kg

Weight – 0.190 kg

Model – LMK20L

Ball rows – 5

dr – 20

D – 32

L – 80

D1 – 54

H – 8

PCD – 43

K – 42

W – 38

A – 36

F – 24

d1 x d2 x h – 5.5 x 9 x 5.1

Eccentricity (max) – 20

Radial clearance (max): -6

Dynamic load – 140 kg

Static load – 270 kg

Weight – 0.260 kg

Model – LMK30L

Ball rows – 6

dr – 30

D – 45

L – 123

D1 – 74

H – 10

PCD – 60

K – 58

W – 51

A – 49

F – 35

d1 x d2 x h – 6.6 x 11 x 6.1

Eccentricity (max) – 20

Radial clearance (max): -8

Dynamic load – 249 kg

Static load – 549 kg

Weight – 0.680 kg
