  • Worm Gear Reducer NMRV040 – Ratio 1:15 / 1:50 / 1:100
    Quick view

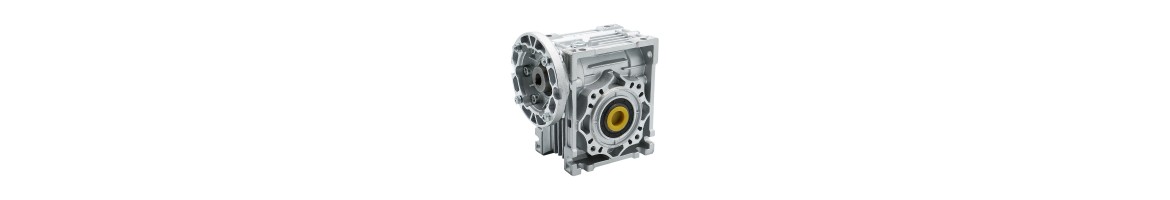

    Worm Gear Reducer NMRV040 – Ratio 1:15 / 1:50 / 1:100

    €49.08

    Model: NMRV040

    Type: Worm Gear Reducer

    Ratio: 1:15 / 1:50 / 1:100

    Mounting Type: Flange Mount

    Housing: Aluminium Alloy (ADC12) – anodised, lightweight and robust

    Input Shaft Diameter: Ø14 mm

    Output Shaft Diameter: Ø18 mm

    Compatible Motors: NEMA 34 and Induction Motors

    Max. Input Power: 0.37 – 0.75 kW

    Input Speed: 1400 rpm (standard)

    Operating Temperature: -10°C ~ +60°C

    Noise: ≤ 50 dB

    Lubrication: Oil bath with NLGI-2 grease

    Gear Material: Hardened Steel + Bronze Worm Wheel

    Colour: Silver Aluminium with protective coating

    Weight: 2.00 kg
