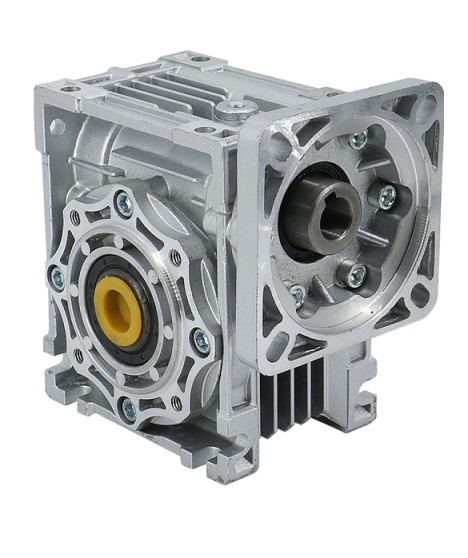

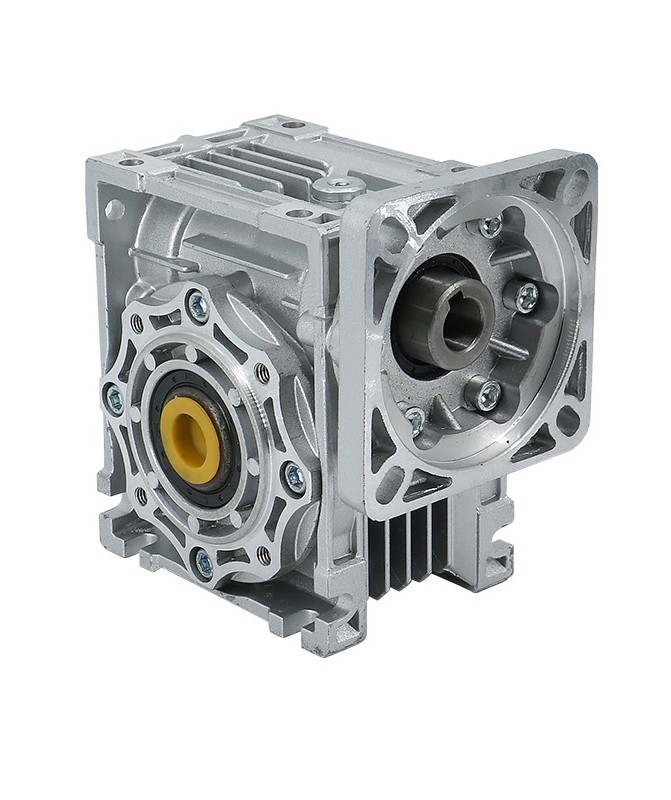

Worm Gear Reducer NMRV040 – Ratio 1:15 / 1:50 / 1:100

Worm Gear Reducer NMRV040 – Ratio 1:15 / 1:50 / 1:100

Model: NMRV040

Type: Worm Gear Reducer

Ratio: 1:15 / 1:50 / 1:100

Mounting Type: Flange Mount

Housing: Aluminium Alloy (ADC12) – anodised, lightweight and robust

Input Shaft Diameter: Ø14 mm

Output Shaft Diameter: Ø18 mm

Compatible Motors: NEMA 34 and Induction Motors

Max. Input Power: 0.37 – 0.75 kW

Input Speed: 1400 rpm (standard)

Operating Temperature: -10°C ~ +60°C

Noise: ≤ 50 dB

Lubrication: Oil bath with NLGI-2 grease

Gear Material: Hardened Steel + Bronze Worm Wheel

Colour: Silver Aluminium with protective coating

Weight: 2.00 kg

Model: Ratio 1:15
€49.08
Tax included

Gear
Ratio

Applications

Output Speed
(at 1400 rpm input)

Maximum
Torque

Efficiency

Load Type

Weight

1:15

light automation, conveyors and CNC axes

~93 rpm

~8–10 Nm

≈ 85%

Light to medium

2 kg

1:50

CNC machines, lifting mechanisms and robotic platforms

~28 rpm

~20–25 Nm

≈ 78%

Medium to heavy

2 kg

1:100

automated doors and slow-moving transport systems

~14 rpm

~30–35 Nm

≈ 70%

Medium to heavy
low-speed

2 kg

Advantages:

High efficiency and stability during operation

Compact design and easy installation

Quiet operation thanks to the precision worm gear

Aluminium alloy housing – lightweight and corrosion-resistant

Universal compatibility with electric motors (incl. NEMA, IEC, Induction)

Applications:

CNC and automated systems

Conveyors and transporters

Packaging machines

Robotic axes
