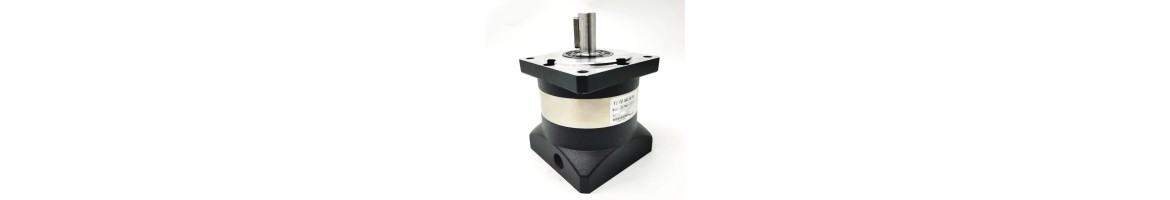

Planetary

Planetary

Active filters

  • HLTNC FLF57 Planetary Gearbox for NEMA 23 Stepper Motor – Ratio 1:10 | High Precision and Reliability
    Quick view

    Planetary Gearbox for NEMA 23 Motor (Ratio 1:10)

    €38.04

    Model: HLTNC FLF57

    Type: Planetary gearbox

    Compatible motor: NEMA 23 stepper motor (57 mm frame)

    Gear ratio: 1:10

    Max. input speed: ~2000 rpm

    Efficiency: ≈ 90 %

    Backlash: ≤ 25 – 30 arc-min

    Housing: Metal/cast iron for high durability

    Weight: 0.800 kg

  • Planetary Gearbox PX80 – 1:10 / 1:20 / 1:100 for Servo/Stepper Motor Nema 32
    Quick view

    Planetary Gearbox for Nema 32 Motor - PX 80

    €78.00

    Technical specifications:

    Series: PX80 (NEMA32)

    Flange: 80 mm (for servo/stepper motor)

    Type: Planetary gearbox

    Gear ratios:

    1:10

    1:20

    1:100

    Input shaft: 16 mm

    Output shaft: 16 mm

    Mounting: direct to stepper motor

    Input shaft length: ~ 30 mm

    Efficiency: up to ~90–95%

    Noise level: ≤62 dB

    Input speed: up to ~6000 rpm

    Backlash: low

    Construction: steel gears + aluminium housing

    Model

    Gear ratio

    Application

    Rated torque

    Length

    Weight

    PX80 - 1:10

    Medium

    Balance between speed and torque

    ~50–80 Nm

    86 mm

    1.550 kg

    PX80 - 1:20

    High

    Greater force and better control

    ~80–100 Nm

    95 mm

    1.900 kg

    PX80 - 1:100

    Very high

    Maximum torque and precision

    up to 300 Nm

    110 mm

    2.300 kg

  • Planetary Gearbox PX86 – 1:5 / 1:10 / 1:20 / 1:100 for NEMA34
    Quick view

    Planetary Gearbox for Nema 34 Motor - PX 86

    €66.00

    Technical specifications:

    Series: PX86 (NEMA34)

    Flange: 86 mm (for servo/stepper motor)

    Type: Planetary gearbox

    Gear ratios:

    1:5

    1:10

    1:20

    1:100

    Input shaft: 14 mm

    Output shaft: 14 mm

    Mounting: direct to stepper motor

    Input shaft length: ~ 30mm

    Efficiency: up to ~90–95%

    Backlash: low

    Construction: steel gears + aluminium housing

    Model

    Gear ratio

    Application

    Rated torque

    Length

    Weight

    PX86 - 1:5

    Low reduction

    High speed, moderate torque

    ~40–60 Nm

    80 mm

    1.600 kg

    PX86 - 1:10

    Medium

    Balance between speed and power

    ~60–80 Nm

    86 mm

    1.700 kg

    PX86 - 1:20

    High

    Higher torque

    ~80–100 Nm

    95 mm

    2.100 kg

    PX86 - 1:100

    Very high

    Maximum torque, low speed

    up to 100 Nm

    110 mm

    2.750 kg
