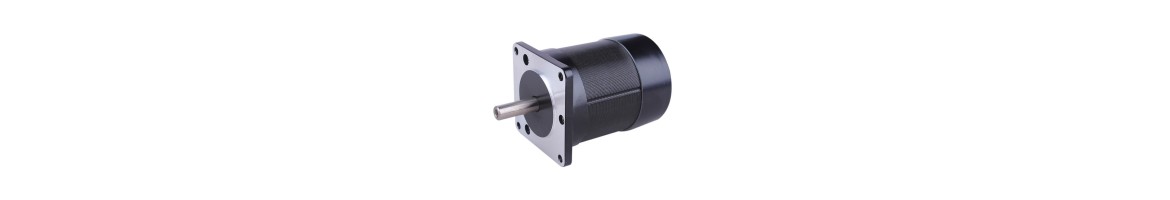

BLDC Motors

Model: 57BL S 002

Type: dual shaft

Number of poles: 8

Phase-to-phase resistance: 0.9 ohms

Rated voltage: 36VDC

No-load speed: 4800 ±10% RPM

No-load current: 0.5A

Torque: 0.22Nm

Rotational speed: 4000±10% RPM

Output power: 92W

BACK EMF constant: 7.5V/KRPM

Torque constant: 0.072Nm/A

Insulation class: B

Shaft diameter - Ø8

Weight: 0.700 kg.

Model: 86BLS125

Class: two-shaft

Number of poles: 8

Interphase resistance: 0.09 ohms

Rated voltage: 48VDC

No-load speed: 3700 ±10% RPM

No-load current: 2.8A

Torque: 2.1Nm

Rotational speed: 3000±10% RPM

Output power: 660W

BACK EMF constant13V/KRPM

Torque constant: 0.124Nm/A

Insulation class: B

Front shaft diameter - Ø14

Rear shaft diameter - Ø5

Weight: 4.00 kg.
