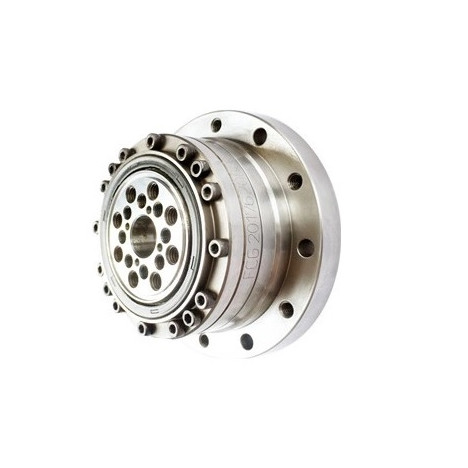

Harmonic Gearbox Model FCG-AJ 58
FCG – AJ series gearboxes, size 58.
|
Size
|
Gear ratio
|
A
|
B
|
C
|
D
|
E 1
|
E 2
|
||||
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
r/min
|
r/min
|
||
|
58 |
80 |
714 |
73 |
1924 |
196 |
1001 |
102 |
3185 |
325 |
3000 |
2200 |
|
100 |
905 |
92 |
2067 |
211 |
1378 |
141 |
4134 |
422 |
|||
|
120 |
969 |
99 |
2236 |
228 |
1547 |
158 |
4329 |
442 |
|||
|
160 |
969 |
99 |
2392 |
244 |
1573 |
161 |
4459 |
455 |
|||
A - Rated torque
B - Permissible peak load (Start/Stop)
C - Permissible maximum momentary torque load
D - Values at which loading may occur
E 1 - Maximum wave generator speed with oil lubrication
E 2 - Maximum wave generator speed with grease lubrication
For more detailed information on dimensions, please refer to the Attachments section.
If you are interested in a model that is not currently available, do not hesitate to contact us!
