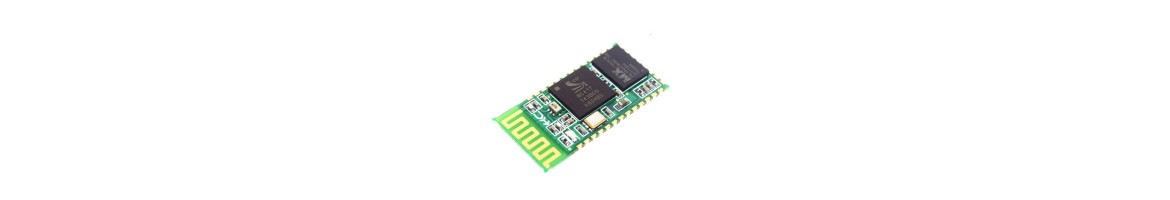

Wireless Modules

The Bluetooth XBee Shield V03 Module provides an easy way to connect 20-pin 2.0mm pitch communication boards to an Arduino-compatible board. Such boards include Bluetooth or XBee boards. Via 2.54mm pitch pin headers, the expansion board connects to an Arduino-compatible board such as Uno, Mega etc. The same headers are extended on the top layer to sockets, to which multiple Arduino expansion boards can be connected – for motors, sensors, etc. In the middle of the expansion board, 2.00mm pitch socket headers are provided, with suitable arrangement for connecting Bluetooth or XBee boards. Bluetooth modules can transmit data to 1 point via a stable protocol. XBee modules can communicate with multiple XBee modules.

Specifications of RF Transmitter XD-FST:

- Supply voltage: 3.5V-12V

- Current consumption: up to 40mA

- Communication speed: up to 10Kbps

- Frequency range: 433MHz

- Radiated power: 10mW

- Transmission range: 20-200m, depends on the supply voltage

- Signal modulation: ASK – Amplitude Shift Keying

- Operating temperature: -40ºC to +85ºC

- Dimensions: 19mm x 19mm

Specifications of RF Receiver XD-RF-5V:

- Supply voltage: 5V

- Current consumption: up to 6mA

- Communication speed: up to 10Kbps

- Frequency range: 433MHz

- Sensitivity: -105dB

- Signal modulation: ASK – Amplitude Shift Keying

- Operating temperature: -40ºC to +85ºC

- Dimensions: 30mm x 14mm

Board specifications:

• Supply voltage: 5V supplied via the pin headers

• Current consumption: 40mA

• Communication protocol: Bluetooth V2.0

• Communication speed: 2.1Mb/s

• Power level: Class 2, +6dBm

• Frequency range: 2.4GHz – 2.48GHz, ISM frequency band

• Receiver sensitivity: -85dBm

• USB communication protocol: USB v1.1/2.0

• Security: Authentication and encryption

• Operating temperature: -20ºC to +55ºC

• Connector types: 2.54mm pin header

• 14 digital input/output pins: 6 of which are PWM
