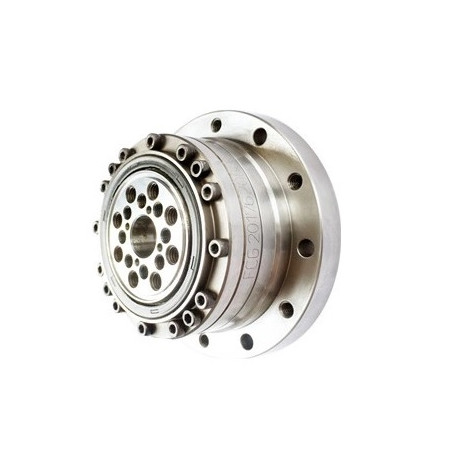

Harmonic Gearbox Model FCG-AJ 17
Reducers from the FCG – AJ series, size 17.
|
Size |
Gear Ratio |
A |
B |
C |
D |
E 1 |
E 2 |
Weight |
||||
|
Nm |
kgfm |
Nm |
kgfm |
Nm |
kgfm |
Nm |
kgfm |
r/min |
r/min |
0.745 kg |
||
|
17 |
50 |
21 |
2.1 |
44 |
4.5 |
34 |
3.5 |
91 |
9 |
7300 |
3500 |
|
|
80 |
29 |
3.0 |
56 |
5.7 |
35 |
3.6 |
113 |
12 |
||||
|
100 |
31 |
3.2 |
70 |
7.1 |
51 |
5.2 |
143 |
15 |
||||
|
120 |
31 |
3.2 |
70 |
7.1 |
51 |
5.2 |
112 |
11 |
||||
A - Nominal torque
B - Permissible peak load (Start/Stop)
C - Permissible maximum momentary load
D - Values at which loading is possible
E 1 - Maximum speed of the wave generator when lubricated with oil
E 2 - Maximum speed of the wave generator when lubricated with grease
For more detailed information regarding dimensions, please refer to the Attached files section.
If you are interested in a model that is currently unavailable, please do not hesitate to contact us!
