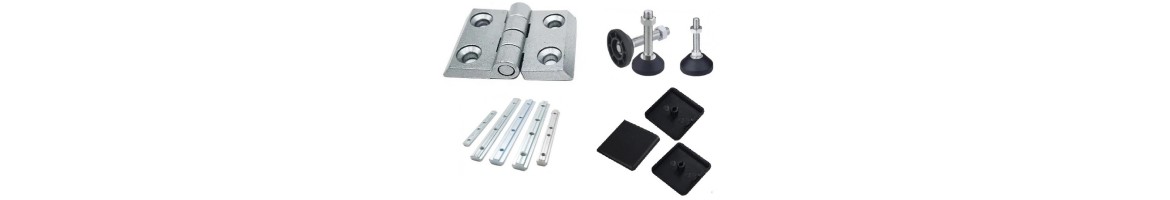

Accessories

Model

Thread diameter
(M)

Thread length
(L)

Nut height
(S)

Base diameter
(A)

Base height
(H)

Nut diameter

Total height

Weight

M8*50

8

50

6

39

23

14

72

0.05 kg

M8*100

8

100

6

39

23

14

132

0.07 kg

M10*80

10

80

6

39

23

17

112

0.09 kg

M10*100

10

100

6

39

23

17

132

0.100 kg

M12*50

12

50

7

39

23

19

87

0.09 kg

M12*80

12

80

8

39

23

19

107

0.100 kg

M16*100

16

100

10

59

23

24

128

0.220 kg

Profile

A
(mm)

B
(mm)

C
(mm)

D
(mm)

F
(mm)

H
(mm)

J
(mm)

K

Weight
(kg)

20x20

4.5

0.75

6.2

9.4

100

79.5

20

M4

0.025

30x30

5.6

1.3

7.6

15.5

180

140

40

M5

0.100

40x40

9.2

1.8

7.9

19

180

140

40

M5

0.176

Profile

A

B

C

D

E

Weight

20x20

38

30

4.8

19

14

0.025 kg

30x30

50

40

6.5

29

23

0.055 kg

40x40

64

44

6.5

39

24

0.083 kg

Model

A

B

C

D

Weight

20x20

20

20

Ø5.2

-

0.001 kg

30x30

30

30

Ø6.9

-

0.003 kg

30x60

60

30

Ø3.5

29

0.006 kg

40x40

40

40

Ø6.9

-

0.005 kg

60x60

60

60

Ø2.7

28

0.014 kg

80x80

80

80

Ø6.8

40

0.017 kg

90x90

90

90

Ø10

45

0.030 kg
