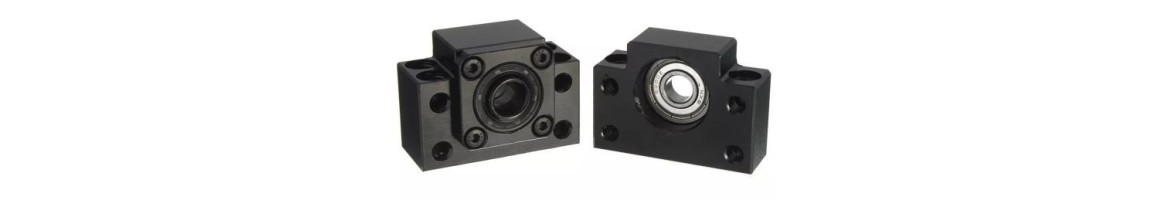

Bearing Supports

Bearing Supports

For correct installation of ball screw pairs, bearing supports must be applied to ensure their correct coaxiality. In practice, two types of bearing supports with fixed and floating mounting have become established. The function of the fixed mounting is to prevent axial displacement of the screw and to guarantee its precise positioning. The floating mounting is intended to compensate for any linear expansion of the screw.

Subcategories

BK
BF
FK
FF

Grid
List

There are 20 products.

Sort by:

Showing 1-15 of 20 item(s)

Quick view
Bearing Support BK 10 - Fixed Mounting - EXLSBK10

€13.68

Model – BK 10

d1 – 10

L – 25

L1 – 5

L2 – 29

L3 – 5

C1 – 13

C2 – 6

B – 60

H – 39

b ±0.02 – 30

h ±0.02 – 22

B1 – 34

H1 – 32.5

E – 15

P – 46

d2 – 5.5

X – 6.6

Y – 10.8

Z – 5

Weight - 0.370 kg
Quick view
Bearing Support BK 12 - Fixed Mounting - EXLSBK12

€14.28

Model – BK 12

d1 – 12

L – 25

L1 – 5

L2 – 29

L3 – 5

C1 – 13

C2 – 6

B – 60

H – 43

b ±0.02 – 30

h ±0.02 – 25

B1 – 34

H1 – 32.5

E – 18

P – 46

d2 – 5.5

X – 6.6

Y – 10.8

Z – 1.5

Weight - 0.385 kg.
Quick view
Bearing Support BK 15 - Fixed Mounting - EXLSBK15

€16.32

Model – BK 15

d1 – 15

L – 27

L1 – 6

L2 – 32

L3 – 6

C1 – 15

C2 – 6

B – 70

H – 48

b ±0.02 – 35

h ±0.02 – 28

B1 – 40

H1 – 38

E – 18

P – 54

d2 – 5.5

X – 6.6

Y – 11

Z – 6.5

Weight - 0.564 kg.
Quick view
Bearing Support BK 20 - Fixed Mounting - EXLSBK20

€27.60

Model – BK 20

d1 – 20

L – 35

L1 – 8

L2 – 43

L3 – 8

C1 – 19

C2 – 8

B – 88

H – 60

b ±0.02 – 44

h ±0.02 – 34

B1 – 52

H1 – 50

E – 22

P – 70

d2 – 6.6

X – 9

Y – 14

Z – 8.5

Weight - 0.564 kg.
Quick view
Bearing Support BK 25 - Fixed Mounting - EXLSBK25

€31.92

Model – BK 25

d1 – 25

L – 42

L1 – 12

L2 – 54

L3 – 9

C1 – 22

C2 – 10

B – 106

H – 80

b ±0.02 – 53

h ±0.02 – 48

B1 – 64

H1 – 70

E – 33

P – 85

d2 – 9

X – 11

Y – 17.5

Z – 11

Weight - 2.150 kg
Quick view
Bearing Support FF 10 - Floating Mount - EXWEFF10

€4.80

Model – FF 10

d1 – 8

L – 12

H – 7

F – 5

Dg6 – 28

A – 43

PCD – 35

B – 35

X – 3.4

Y – 6.5

Z – 4

Weight - 0.060 kg
Quick view
Bearing Support FK 10 - Fixed Mounting - EXWERB10

€12.00

Model – FK 10

d1 – 10

L – 27

H – 10

F – 17

E – 29.5

Dg6 – 34

A – 52

PCD – 42

B – 42

L1 – 7.5

T1 – 5

X – 4.5

Y – 8

Z – 4

Weight - 0.200 kg
Quick view
Bearing Support FK 12 - Fixed Mounting - EXLSFK12

€12.60

Model – FK 12

d1 – 12

L – 27

H – 10

F – 17

E – 29.5

Dg6 – 36

A – 54

PCD – 44

B – 44

L1 – 7.5

T1 – 5

X – 4.5

Y – 8

Z – 4

Weight - 0.200 kg.
Quick view
Bearing Support FK 15 - Fixed Mounting - EXLSFK15

€13.80

Model – FK 15

d1 – 15

L – 32

H – 15

F – 17

E – 36

Dg6 – 40

A – 63

PCD – 50

B – 52

L1 – 10

T1 – 6

X – 5.5

Y – 9.5

Z – 6

Weight - 0.360 kg.
Quick view
Bearing Support FK 20 - Fixed Mounting - EXLSFK20

€21.84

Model – FK 20

d1 – 20

L – 52

H – 22

F – 30

E – 50

Dg6 – 75

A – 85

PCD – 70

B – 68

L1 – 8

T1 – 10

X – 6.6

Y – 11

Z – 10

Weight - 1.00 kg.
Quick view
Bearing Support FK 25 - Fixed Mounting - EXLSFK25

€28.32

Model – FK 25

d1 – 25

L – 57

H – 27

F – 30

E – 60

Dg6 – 63

A – 98

PCD – 80

B – 79

L1 – 13

T1 – 10

X – 9

Y – 15

Z – 13

Weight - 1.440 kg.
Quick view
BF 10 Bearing Support - Floating Mount - EXLSBF10

€5.76

Model – BF 10

d1 – 8

L – 20

B – 60

H – 39

b ±0.02 – 30

h ±0.02 – 22

B1 – 34

H1 – 32.5

E – 15

P – 46

d2 – 5.5

X – 6.6

Y – 10.8
Z – 5

Weight - 0.270 kg
Quick view
BF 12 Bearing Support - Floating Mount - EXLSBF12

€6.42

Model – BF 12

d1 – 10

L – 20

B – 60

H – 43

b ±0.02 – 30

h ±0.02 – 25

B1 – 34

H1 – 32.5

E – 18

P – 46

d2 – 5.5

X – 6.6

Y – 10.8

Z – 1.5

Weight - 0.270 kg
Quick view
BF 15 Bearing Support - Floating Mount - EXLSBF15

€7.08

Model – BF 15

d1 – 15

L – 20

B – 70

H – 48

b ±0.02 – 35

h ±0.02 – 28

B1 – 40

H1 – 38

E – 18

P – 54

d2 – 5.5

X – 6.6

Y – 11

Z – 6.5

Weight - 0.356 kg.
Quick view
BF 20 Bearing Support - Floating Mount - EXLSBF20

€12.24

Model – BF 20

d1 – 20

L – 26

B – 88

H – 60

b ±0.02 – 44

h ±0.02 – 34

B1 – 52

H1 – 50

E – 22

P – 70

d2 – 6.6

X – 9

Y – 14

Z – 8.5

Weight - 0.670 kg.
