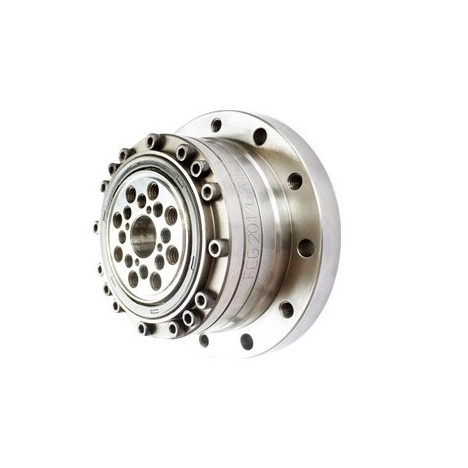

Harmonic Gearbox Model FCG-AJ 14
FCG – AJ series gearboxes, frame size 14.
|
Size
|
Gear ratio
|
A
|
B
|
C
|
D
|
E 1
|
E 2
|
||||
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
r/min
|
r/min
|
||
|
14 |
50 |
7 |
0.7 |
23 |
2.3 |
9 |
0.9 |
46 |
4.7 |
8500 |
3500 |
|
80 |
10 |
1.0 |
30 |
3.1 |
14 |
1.4 |
61 |
6.2 |
|||
|
100 |
10 |
1.0 |
36 |
3.7 |
14 |
1.4 |
70 |
7.1 |
|||
A - Rated torque
B - Allowable peak load (Start/Stop)
C - Allowable maximum momentary load
D - Values at which loading may occur
E 1 - Maximum wave generator speed with oil lubrication
E 2 - Maximum wave generator speed with grease lubrication
For more detailed information on dimensions, please refer to the Attachments section.
If you are interested in a model that is not currently available, do not hesitate to contact us!
