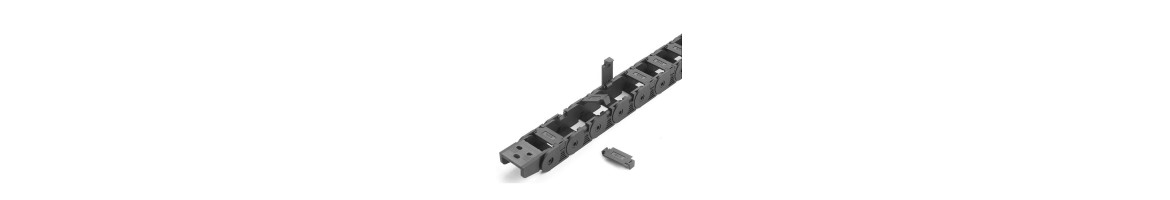

Open Type

Model: EXPCC1825CDC

Inner height – 18 mm

Inner width – 25 mm

Outer height – 24 mm

Outer width – 35.5 mm

Bending radius - 26 mm

Hole spacing – 35 mm

Type - semi-open

Tensile strength: 99 MPa

Operating temperature - from -40℃ to +60℃

Material – PA66

Length – 1 metre

Weight: 0.380 kg.

Model: EXPCC1837ODC

Inner height – 18 mm

Inner width – 37 mm

Outer height – 23.6 mm

Outer width – 48.5 mm

Bending radius - 28 mm

Hole spacing – 25 mm

External open type

Tensile strength: 99 MPa

Operating temperature - from - 40℃ to +60℃

Material – PA66

Length – 1 metre

Weight: 0.500 kg.

Model: EXPCC2538ODC

Inner height – 25 mm

Inner width – 38 mm

Outer height – 35 mm

Outer width – 53 mm

Bending radius - 55 mm

Hole spacing – 52 mm

Type – open on both sides

Tensile strength: 99 MPa

Operating temperature - from - 40℃ to +60℃

Material – PA66

Length – 1 metre

Weight: 0.850 kg.

Model - EXPCC2550ODC

Inner height – 25 mm

Inner width – 50 mm

Outer height – 35 mm

Outer width – 65 mm

Bending radius - 55 mm

Distance between holes – 33 mm

Type – open on both sides

Tensile strength: 99 MPa

Operating temperature - from - 40℃ to +60℃

Material – PA66

Length – 1 metre

Weight: 0.850 kg.

Model - EXPCC3070ODC

Inner height – 30 mm

Inner width – 75 mm

Outer height – 45 mm

Outer width – 91 mm

Bending radius - 55 mm

Distance between holes – 46 mm

Type – open on both sides

Tensile strength: 99 MPa

Operating temperature - from - 40℃ to +60℃

Material – PA66

Length – 1 metre

Weight: 1.250 kg.

Model - EXPCC35125ODC

Internal height – 35 mm

Internal width – 125 mm

External height – 55 mm

External width – 151 mm

Bending radius - 75 mm

Distance between holes – 65 mm

Type – open on both sides

Tensile strength: 99 MPa

Operating temperature - from - 40℃ to +60℃

Material – PA66

Colour - black

Length – 1 metre

Weight: 2.300 kg.

Model - EXPCC45100ODC

Internal height – 45 mm

Internal width – 100 mm

External height – 64 mm

External width – 132 mm

Bending radius - 75 mm

Distance between holes – 68 mm

Type – Open on both sides

Tensile strength: 99 MPa

Operating temperature - from –25 °C to +120 °C

Material – PA66 (Industrial Nylon)

Mounting: Modular construction – possibility for extension / shortening

Length – 1 metre

Weight: 2.400 kg.

Model - EXPCC45175ODC

Inner height – 45 mm

Inner width – 175 mm

Outer height – 65 mm

Outer width – 205 mm

Bending radius - 75 mm

Hole spacing – 60 mm

Type – open on both sides

Tensile strength: 99 MPa

Operating temperature - from - 40℃ to +60℃

Material – PA66

Colour - black

Length – 1 metre

Weight: 2.500 kg.

Model - EXPCC4550ODC

Internal height – 45 mm

Internal width – 50 mm

External height – 65 mm

External width – 80 mm

Bending radius - 75 mm

Distance between holes – 62 mm

Type – Open on both sides

Tensile strength: 99 MPa

Operating temperature - from –25 °C to +120 °C

Material – PA66 (Industrial Nylon)

Mounting: Modular construction – possibility for extension / shortening

Length – 1 metre

Weight: 2.200 kg.
