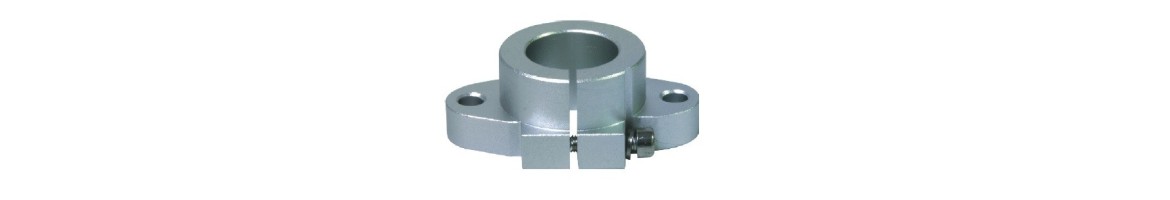

Vertical

Model – SHF 10

Diameter – 10 mm

L – 43

T – 10

F – 5

B – 32

G – 20

H – 24

S – 5.5

Locking bolt – M5

Mounting bolt – M4

Weight – 0.013 kg

Model – SHF 12

Diameter – 12 mm

L – 47

T – 13

F – 7

B – 36

G – 25

H – 28

S – 5.5

Locking bolt – M5

Mounting bolt – M4

Weight – 0.020 kg

Model – SHF 13

Diameter – 13 mm

L – 47

T – 13

F – 7

B – 36

G – 25

H – 28

S – 5.5

Locking bolt – M5

Mounting bolt – M4

Weight – 0.020 kg

Model – SHF 16

Diameter – 16 mm

L – 50

T – 16

F – 8

B – 40

G – 28

H – 31

S – 5.5

Locking bolt – M5

Mounting bolt – M4

Weight – 0.027 kg

Model – SHF 20

Diameter – 20 mm

L – 60

T – 20

F – 8

B – 48

G – 34

H – 37

S – 7

Locking bolt – M6

Mounting bolt – M5

Weight – 0.020 kg

Model – SHF 25

Diameter – 25 mm

L – 70

T – 25

F – 10

B – 56

G – 40

H – 42

S – 7

Locking bolt – M6

Mounting bolt – M5

Weight – 0.060 kg

Model – SHF 30

Diameter – 30 mm

L – 80

T – 30

F – 12

B – 64

G – 46

H – 50

S – 9

Locking bolt – M8

Mounting bolt – M6

Weight – 0.110 kg

Model – SHF 8

Diameter – 8 mm

L – 43

T – 10

F – 5

B – 32

G – 20

H – 24

S – 5.5

Locking bolt – M5

Mounting bolt – M4

Weight – 0.013 kg
