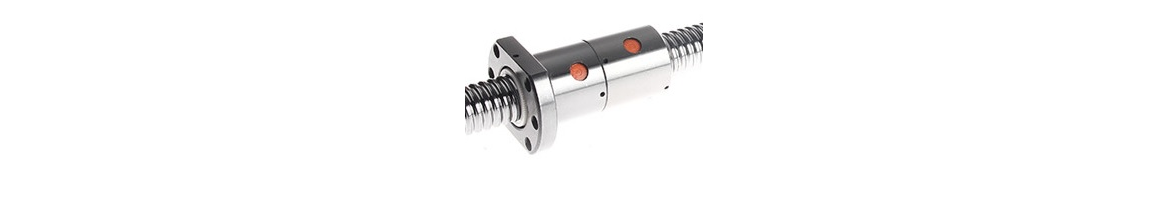

DFU

Model DFU1605

• Diameter (d) – 16 mm

• Pitch – 5 mm

• D – 28 mm

• A – 48 mm

• B – 10 mm

• L – 100 mm

• W – 38 mm

• X – 5.5 mm

• H – 40 mm

• Q – M6

• Ball diameter – 3.175

• Dynamic load (N) – 13533

• Static load – 3052

• Rigidity (kgf/µm) – 44

• Weight – 0.305kg

Model DFU2005

• Diameter (d) – 20 mm

• Pitch – 5 mm

• D – 36 mm

• A – 58 mm

• B – 10 mm

• L – 101 mm

• W – 47 mm

• X – 6.6 mm

• H – 44 mm

• Q – M6

• Ball diameter – 3.175

• Dynamic load rating (N) – 15210

• Static load rating – 3875

• Rigidity (kgf/µm) – 53+

• Weight – 0.480 kg
