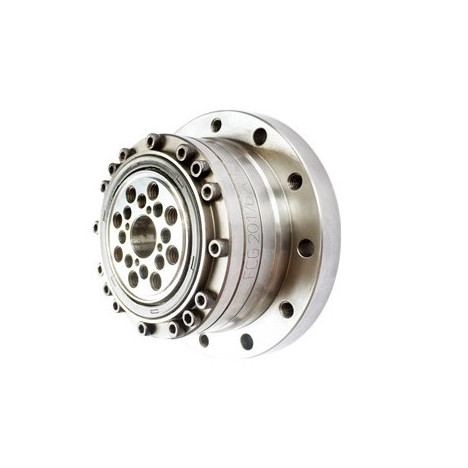

Harmonic Gearbox Model FCG-AJ 40
FCG – AJ series gearboxes, size 40.
|
Size
|
Gear ratio
|
A
|
B
|
C
|
D
|
E 1
|
E 2
|
||||
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
r/min
|
r/min
|
||
|
40 |
50 |
178 |
18 |
523 |
53 |
255 |
26 |
892 |
91 |
4000 |
3000 |
|
80 |
268 |
27 |
675 |
69 |
369 |
38 |
1270 |
130 |
|||
|
100 |
345 |
35 |
738 |
75 |
484 |
49 |
1400 |
143 |
|||
|
120 |
382 |
39 |
802 |
82 |
586 |
60 |
1530 |
156 |
|||
|
160 |
382 |
39 |
841 |
86 |
586 |
60 |
1530 |
156 |
|||
A - Rated torque
B - Permissible peak load (Start/Stop)
C - Permissible maximum momentary load
D - Values at which loading may occur
E 1 - Maximum wave generator speed with oil lubrication
E 2 - Maximum wave generator speed with grease lubrication
For more detailed information on dimensions, please refer to the Attachments section.
If you are interested in a model that is not currently available, do not hesitate to contact us!
