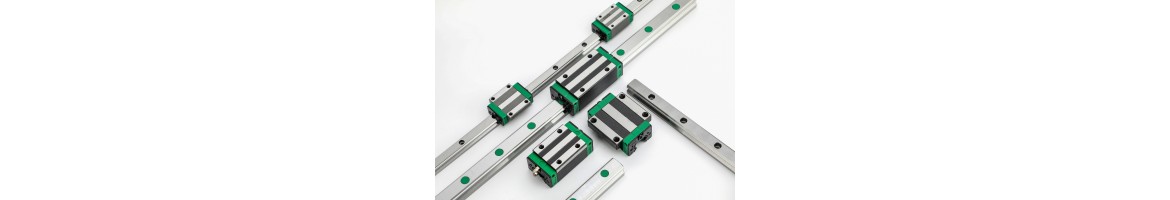

Prismatic

H - 28                L1 - 39.4

H1 - 4.3             L - 61.4

N - 9.5               K1 - 10

W - 34               K2 - 4.85

B - 26                G - 5.3

B1 - 4                T - 6

C - 26                H2 - 7.95

H3 - 7.7

MR - 12.24 kg-m

MP - 1.02 kg-m

MY - 10.2 kg-m

Mounting bolt - M4/16

Basic load rating:

- Dynamic - 1160.44 kg

- Static - 1730.46 kg

Weight - 0.180 kg.

W - 44                     L1 - 50.5

B - 32                      T - 8

L - 77.5                   K1 - 12.25

H - 30                     K2 - 6

B1 - 6                     Mxl - M5 x 6

H1 - 4.6                  H2 - 6

G - 12                     H3 - 6

N - 9.5                    C - 36

Mounting bolt - M5/16

Dynamic load: 1.8 tonnes

Static load: 2.8 tonnes

Weight - 0.300 kg.

W - 48                     L1 - 58

B - 35                      T - 8

L - 84                      K1 - 16

H - 40                      K2 - 6

B1 - 6.5                   Mxl - M 6x8

H1 - 5.5                   H2 - 10

G - 12                      H3 - 9

N - 12.5                   C - 35

Weight - 0.517 kg.

Mounting bolt - M6/20

Dynamic load: 2.7 tonnes

Static load: 3.7 tonnes

W - 70                     L1 - 80

B - 50                      T - 10.2

L - 112.4                 K1 - 20.6

H - 55                      K2 - 7

B1 - 10                    Mxl - M8 x 12

H1 - 7.5                   H2 - 16

G - 12                      H3 - 19.6

N - 18                      C - 50

Mounting bolt - M8/25

Dynamic load: 5 tonnes

Static load: 7 tonnes

Weight - 1.450 kg.

W - 86                      L1 - 97

B - 60                       T - 16

L - 139.4                  K1 - 23

H - 70                       K2 - 10

B1 - 13                     Mxl - M10 x 17

H1 - 9.5                    H2 - 18.5

G - 12.9                    H3 - 30.5

N - 20.5                    C - 60

Mounting bolt - M12/35

Dynamic load: 7.9 tonnes

Static load: 10.4 tonnes

Weight - 2.730 kg.

H - 24                L1 - 39.6

H1 - 4.3             L - 61.4

N - 16               K1 - 8

W - 47               K2 - 4.85

B - 38                G - 5.3

B1 - 4.5             T - 6

C - 30                H2 - 3.95

H3 - 3.7

MR - 12.24 kg/m

MP - 10.20 kg/m

MY - 10.20 kg/m

Mounting bolt - M4/16

Basic load rating:

- Dynamic - 1160.44 kg

- Static - 1730.46 kg

Weight - 0.170 kg

H - 30                L1 - 50.5

H1 - 4.6             L - 77.5

N - 21.5             K1 - 10.25

W - 63               K2 - 6

B - 53                G - 12

B1 - 5                T - 8

C - 40                H2 - 6

H3 - 6

MR - 27.50 kg/m

MP - 20.40 kg/m

MY - 20.40 kg/m

Mounting bolt - M5/16

Basic load rating:

- Dynamic - 1810 kg

- Static - 2830 kg

Weight - 0.400 kg.

H - 38                L1 - 58

H1 - 5.5             L - 84

N - 23.5             K1 - 10.7

W - 70               K2 - 6

B - 57                G - 12

B1 - 6.5             T - 8

C - 45                H2 - 6

H3 - 5

MR - 43 kg/m

MP - 33 kg/m

MY - 33 kg/m

Mounting bolt - M6/20

Basic load rating:

- Dynamic - 2700 kg

- Static - 3720 kg

Weight - 0.590 kg.

d - 4.5

D - 7.5

WR - 15

HR - 15

P - 60

E - 20

h - 5.3

Maximum length - 4 m.

Approximate weight per 1m. - 1.500 kg.

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

This bellows protects the linear guide rail from dust and swarf. Following the profile of the guide, it ensures both secure attachment to the rail and smooth movement during extension and retraction. The ends finish with Velcro on thickened plastic strips that can be drilled and bolted by you.

Material – polymer

Colour - black

Length in extended state – 1 m.

Length in compressed state - 11 cm.

Weight – 0.150 kg

d - 6

D - 9.5

WR - 20

HR - 17.5

P - 60

E - 20

h - 8.5

Maximum length - 4 m.

Approximate weight per 1m. - 2.200 kg.

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

This bellows protects the linear guide rail from dust and swarf. Following the profile of the guide, it ensures both secure attachment to the rail and smooth movement during extension and retraction. The ends finish with Velcro on thickened plastic strips that can be drilled and bolted by you.

Material – polymer

Colour - black

Length when extended – 1 m.

Length when compressed - 11 cm.

Weight – 0.150 kg

d - 7

D - 11

WR - 23

HR - 22

P - 60

E - 20

h - 9

Maximum length - 4 m.

Approximate weight per 1m. - 3.250 kg.

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

This bellows protects the linear guide rail from dust and chips. Following the profile of the guide, it ensures both attachment to the rail and smooth movement when extending and retracting. The ends finish with Velcro on thickened plastic strips that can be drilled and bolted by you.

Material – polymer

Colour - black

Length in extended state – 1 m.

Length in retracted state - 11 cm.

Weight – 0.150 kg

d – 9

D - 14

WR - 34

HR - 29

P - 80

E - 20

h - 12

Maximum length - 4 m.

Approximate weight per 1m. - 6.300 kg.

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!
