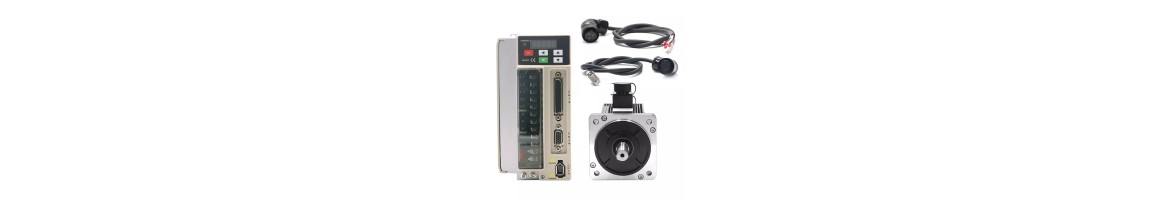

Servo Drives

Technical specifications:

• Model: NEMA23 (standard size 57 x 57 mm)

• Rated current: 3.5A

• Phases: 3

• Poles: 8

• Winding resistance: 1.19±10%ohms

• Winding inductance: 0.58±20%mH

• Power: 100 W

• Speed: up to 3000 rpm

• Torque: 0.29 Nm (rated)

• Maximum current: 6.0A

• Motor type: DC servo motor

• Integrated driver: Yes, V6 version with improved stability and speed

• Power supply: 36VDC

• Control: PWM Step/Direction, RS232/RS485

• Interface: limit switches, alarm output, encoder

• Mounting: NEMA23 standard flange, suitable for CNC machines, robots and automation

• Shaft size: Ø8

Model: 130SFM-E07725-2B6 + KA10

Motor type : Nema 43

Phase: single-phase

Power supply: 220V

Power: 2 kW

Encoder: 2500 pulses per revolution

Maximum torque: 22 Nm

Rated torque: 7.7 Nm

Shaft diameter - 22 mm

Cable length - 3 metres

Driver: KA10

Weight: 11.6 kg

Model: 60BST-C01330-2B6 + KA03

Motor type: Nema 24

Phase: single-phase

Supply: 220V

Power: 400W

Encoder: 2500 pulses per revolution

Maximum torque: 4.4 Nm

Rated torque: 1.27 Nm

Shaft diameter - 14 mm

Cable length - 5 meters

Driver: KA03

Weight: 3.200 kg

Model: 80BST-C02430-2B6 + KA05

Motor type: Nema 32

Phase: single-phase

Supply voltage: 220V

Power: 750W

Encoder: 2500 pulses per revolution

Maximum torque: 7.1 Nm

Rated torque: 2.39 Nm

Shaft diameter - 19 mm

Cable length - 5 metres

Driver: KA05

Weight: 2.1 kg
