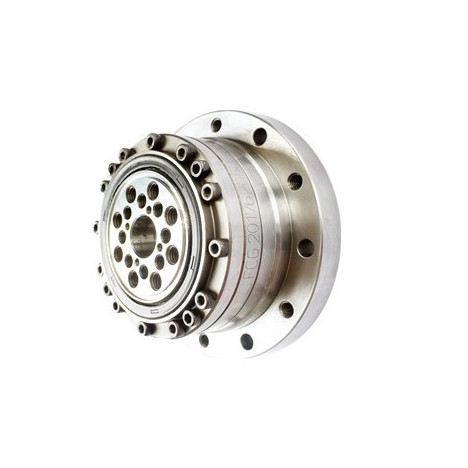

Harmonic Gearbox Model FCG-AJ 65
FCG – AJ series gearboxes, size 65.
|
Size
|
Gear ratio
|
A
|
B
|
C
|
D
|
E 1
|
E 2
|
||||
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
r/min
|
r/min
|
||
|
65 |
80 |
979 |
100 |
2770 |
283 |
1366 |
139 |
4884 |
498 |
2800 |
1900 |
|
100 |
1248 |
127 |
3020 |
308 |
1996 |
204 |
6237 |
636 |
|||
|
120 |
1248 |
127 |
3296 |
336 |
2061 |
210 |
6237 |
636 |
|||
|
160 |
1248 |
127 |
3453 |
352 |
2061 |
210 |
6237 |
636 |
|||
A - Rated torque
B - Permissible peak load (Start/Stop)
C - Permissible maximum momentary torque load
D - Values at which loading may occur
E 1 - Maximum wave generator speed with oil lubrication
E 2 - Maximum wave generator speed with grease lubrication
For more detailed information on dimensions, please refer to the Attachments section.
If you are interested in a model that is not currently available, do not hesitate to contact us!
