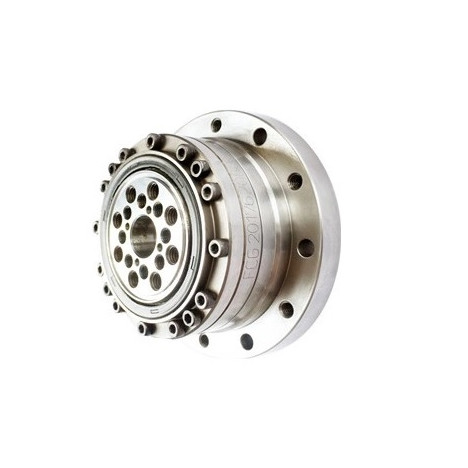

Harmonic Gearbox Model FCG-AJ 45
FCG – AJ series gearboxes, size 45.
|
Size
|
Gear ratio
|
A
|
B
|
C
|
D
|
E 1
|
E 2
|
||||
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
r/min
|
r/min
|
||
|
45 |
50 |
229 |
23 |
650 |
66 |
345 |
35 |
1235 |
126 |
3800 |
3000 |
|
80 |
407 |
42 |
918 |
94 |
507 |
52 |
1651 |
168 |
|||
|
100 |
457 |
47 |
982 |
100 |
650 |
66 |
2041 |
208 |
|||
|
120 |
523 |
53 |
1070 |
109 |
806 |
82 |
2288 |
233 |
|||
|
160 |
523 |
53 |
1147 |
117 |
819 |
84 |
2483 |
253 |
|||
A - Rated torque
B - Permissible peak load (Start/Stop)
C - Permissible maximum momentary load
D - Values at which loading may occur
E 1 - Maximum wave generator speed with oil lubrication
E 2 - Maximum wave generator speed with grease lubrication
For more detailed information on dimensions, please refer to the Attachments section.
If you are interested in a model that is not currently available, do not hesitate to contact us!
