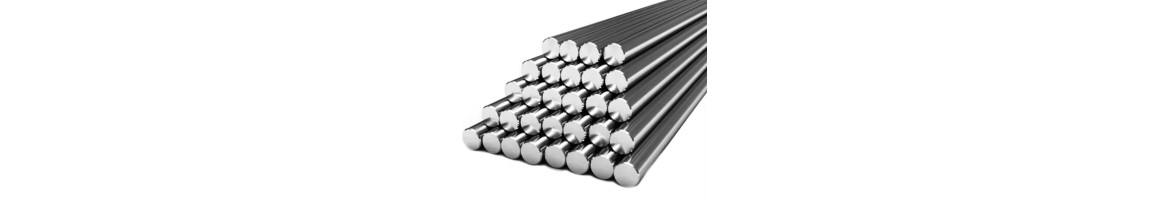

Rails

Model: F8

Outer diameter: 8mm

Accuracy tolerance:

• g6: from -0.005 to -0.014
• h6: from 0 to -0.009

Depth of hardened layer: 0.4 to 1.0

Material: high-quality steel S45C

Hardness: HRC 58-60

Maximum length: 4m

Approximate weight per 1 meter: 0.400kg

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

Model: F10

Outer diameter: 10mm

Accuracy tolerance:

• g6: from -0.005 to -0.014
• h6: from 0 to -0.009

Depth of hardened layer: 0.6 to 1.5

Material: high-quality steel S45C

Hardness: HRC 58-60

Maximum length: 4m

Approximate weight per 1 meter: 0.630kg

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

Model: F12

Outer diameter: 12mm

Accuracy tolerance:

• g6: from -0.006 to -0.017
• h6: from 0 to -0.011

Depth of hardened layer: 0.6 to 1.5

Material: high-quality steel S45C

Hardness: HRC 58-60

Maximum length: 4m

Approximate weight per 1 meter: 0.900kg

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

Model: F16

Outer diameter: 16mm

Accuracy tolerance:

• g6: from -0.006 to -0.017
• h6: from 0 to -0.011

Depth of hardened layer: 0.8 to 2.0

Material: high-quality steel S45C

Hardness: HRC 58-60

Maximum length: 4m

Approximate weight per 1 meter: 1.580kg

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

Model: F20

Outer diameter: 20mm

Accuracy tolerance:

• g6: from -0.007 to -0.020
• h6: from 0 to -0.013

Hardened layer depth: 0.8 to 2.0

Material: high-quality steel S45C

Hardness: HRC 58-60

Maximum length: 4m

Approximate weight per 1 meter: 2.500kg

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

Model: F25

Outer diameter: 25mm

Accuracy tolerance:

• g6: from -0.007 to -0.020
• h6: from 0 to -0.013

Hardened layer depth: 0.8 to 2.0

Material: high-quality steel S45C

Hardness: HRC 58-60

Maximum length: 4m

Approximate weight per 1 meter: 3.850kg

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

Model: F30

Outer diameter: 30mm

Accuracy tolerance:

• g6: from -0.007 to -0.020
• h6: from 0 to -0.013

Hardened layer depth: 0.8 to 3.0

Material: high-quality steel S45C

Hardness: HRC 58-60

Maximum length: 4m

Approximate weight per 1 meter: 5.500kg

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

Type: Hollow Shaft

Model: SP16

Outer diameter: 16 mm

Inner diameter: 10 mm

Accuracy tolerance :

g6: from -0.006 to -0.017

h6: from 0 to -0.011

Hardened layer depth: 0.8 to 2.0

Surface treatment: Hardened

Material: high-quality steel GCr15

Hardness: HRC 60-62

Maximum length: 4 m

Approximate weight per 1 meter: 0.950 kg.

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

Type: Hollow Shaft

Model: SP20

Outer diameter: 20 mm

Inner diameter: 13 mm

Accuracy tolerance :

g6: from -0.007 to -0.020

h6: from 0 to -0.013

Case hardening depth: 0.8 to 2.0

Surface treatment: Hardened

Material: high-quality steel GCr15

Hardness: HRC 60-62

Maximum length: 4 m

Approximate weight per 1 metre: 1.200 kg.

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

Type: Hollow Shaft

Model: SP25

Outer diameter: 25 mm

Inner diameter: 17 mm

Accuracy tolerance :

g6: from -0.007 to -0.020

h6: from 0 to -0.013

Case hardening depth: 0.8 to 2.0

Surface treatment: Hardened

Material: high-quality steel GCr15

Hardness: HRC 60-62

Maximum length: 4 m

Approximate weight per 1 meter: 2.00 kg

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!

Type: Hollow Shaft

Model: SP30

Outer diameter: 30 mm

Inner diameter: 20 mm

Accuracy tolerance:

g6: from -0.009 to -0.025

h6: from 0 to -0.016

Depth of hardened layer: 0.8 to 3.0

Surface treatment: Hardened

Material: high-quality steel GCr15

Hardness: HRC 60-62

Maximum length: 4 m

Approximate weight per 1 meter: 3.250 kg.

Cutting accuracy: ≤ 1 mm

Rails under 20 cm are not cut!
