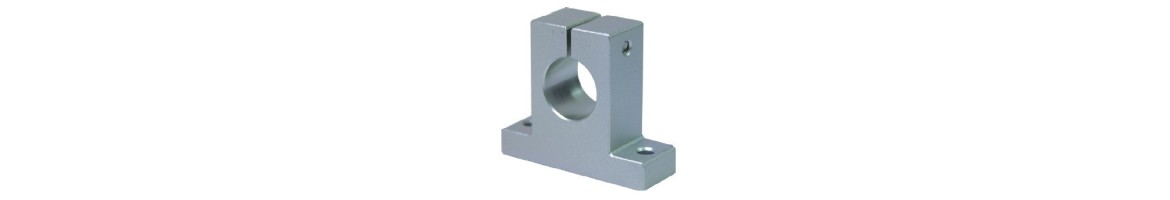

Horizontal

Model – SK10

Diameter – 10 mm

h – 20

G – 21

A – 42

B – 14

C – 32.8

E – 6

F – 18

R – 32

S – 5

T – 5.5

Locking bolt – M 4

Mounting bolt – M 5

Weight – 0.024 kg

Model – SK12

Diameter – 12 mm

h – 23

G – 21

A – 42

B – 14

C – 37.5

E – 6

F – 20

R – 32

S – 5

T – 5.5

Locking bolt – M 4

Mounting bolt – M 5

Weight – 0.030 kg

Model – SK16

Diameter – 16 mm

h – 27

G – 24

A – 48

B – 16

C – 44

E – 8

F – 25

R – 38

S – 5

T – 5.5

Locking bolt – M 4

Mounting bolt – M 5

Weight – 0.040 kg

Model – SK20

Diameter – 20 mm

h – 31

G – 30

A – 60

B – 20

C – 51

E – 10

F – 30

R – 45

S – 7.5

T – 6.6

Locking bolt – M 5

Mounting bolt – M 6

Weight – 0.070 kg

Model – SK25

Diameter – 25 mm

h – 35

G – 35

A – 70

B – 24

C – 60

E – 12

F – 38

R – 56

S – 7

T – 6.6

Locking bolt – M 6

Mounting bolt – M 6

Weight – 0.130 kg

Model – SK30

Diameter – 30 mm

h – 42

G – 42

A – 84

B – 28

C – 70

E – 12

F – 44

R – 64

S – 10

T – 9

Locking bolt – M 6

Mounting bolt – M 8

Weight – 0.180 kg

Model – SK8

Diameter – 8 mm

h – 20

G – 21

A – 42

B – 14

C – 32.8

E – 6

F – 18

R – 32

S – 5

T – 5.5

Locking bolt – M 4

Mounting bolt – M 5

Weight – 0.024 kg
