Drivers

Model - ZM-BL4815F

Supply voltage: 24 - 48V DC

Input power: 720 W

Operating temperature: 0°C – 50°C

Maximum rotation speed: 8000 rpm

High torque at low speeds

Control pins for enable and direction: EN, DIR

Alarm output signal: ALM

Speed output signal

Dimensions: 150 x 98 x 53 mm

Weight: 0.600 kg

JK-HSD57 is a stepper servo drive that can accept 24-60 VDC operating voltage and output 4.5A continuous current depending on the load. It is capable of driving NEMA 17, 23 and 24 stepper servo motors (stepper motors with encoder) with closed-loop real-time position control. Based on the latest DSP technologies and with the implementation of advanced control algorithms. JK-HSD57 implements servo control of stepper motors for precise positioning regardless of the load. In combination with a feedback motor, they provide optimal operation of stepper motors. The default output resolution is 2000 pulses (equal to 16 microsteps in two-phase stepper systems). Using DIP switches, the user can easily change the output resolution to one of 15 output resolutions from 400 to 51,200 (equal to 2-256 microsteps in 2-phase stepper systems).

JK-HSD86 is a stepper servo drive that can accept 20-80 VDC operating voltage and output 0.1-10A continuous current depending on the load. It is capable of driving NEMA 17, 23, 24, and 34 stepper servo motors (stepper motors with encoders) with closed-loop real-time position control. Based on the latest DSP technologies and implementing advanced control algorithms. JK-HSD86 implements servo control of stepper motors for precise positioning regardless of the load. In combination with a feedback motor, they provide optimal operation of stepper motors. The default output resolution is 2000 pulses (equal to 10 microsteps in two-phase stepper systems). Using DIP switches, the user can easily change the output resolution to one of 15 output resolutions from 400 to 51,200 (equal to 2-256 microsteps in 2-phase stepper systems).

SH-CL86BH is a closed-loop hybrid servo driver for two-phase NEMA 34 stepper motors with encoder feedback. It supports up to 8 A, Step/Dir control, encoder feedback and RS232 configuration.

The current batch is marked on the enclosure for 20–80 VAC or 30–110 VDC supply. Always follow the marking on the specific driver.

Model: 2DM2280

Supply voltage (VAC): 110-220 VAC

Output current: 4.5 - 8A

8 output current adjustment steps

Half current setting at idle

Maximum pulse frequency: 200kHz

28 microstepping settings

Automatic self-test for high/low voltage and overcurrent

Cooling with built-in fan

Weight: 1.700 kg

Model: DM556

Supply voltage: 20 - 50 VDC

Output current: 1.4 - 5.6 A

Microstepping: 400 - 25600 pulses/revolution

Mode Half current for energy saving at rest

Weight: 0.270 kg.

Driver DM556 is powered by DC only, observe polarity!!!

Model: DM860

Supply Voltage (VDC): 30-110 VDC

Supply Voltage (VAC): 24-80 VAC

Frequency: 0 - 300kHz

Logic Signal Current: 7-15mA

Output Current: 2 - 7.2A

Microstepping: 400 - 25000 pulses/revolution

Energy-saving mode when no pulses: Half Current

Weight: 0.500 kg

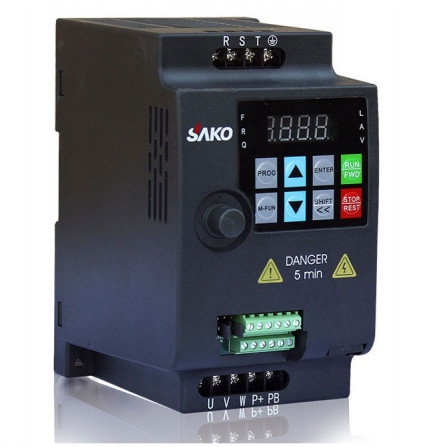

Model SKI780-0D75G-1

Power – 0.75 kW

Output current – 4 A

Supply – Single-phase (1PH) 220V ± 15%, 8.2A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0-220V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 200 x 140 x 160 mm

Weight – 1 kg

Model SKI780-0D75G-4

Power – 0.75 kW

Output current – 2.1 A

Supply – Three-phase (3PH) 380V ± 15%, 3.4A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-380V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 200 x 140 x 160 mm

Weight – 1 kg

Model SKI780-1D5G-1

Power – 1.5 kW

Output current – 7 A

Supply – Single-phase (1PH) 220V ± 15%, 14A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-220V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 195 x 140 x 160 mm

Weight – 1 kg

Model SKI780-1D5G-4

Power – 1.5 kW

Output current – 3.8 A

Supply – Three-phase (3PH) 380V ± 15%, 5A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-380V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 195 x 140 x 160 mm

Weight – 1 kg

Model SKI780-2D2G-1

Power – 2.2 kW

Output current – 9.6 A

Supply – Single-phase (1PH) 220V ± 15%, 23A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-220V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 200 x 140 x 160 mm

Weight – 1 kg

Model SKI780-2D2G-4

Power – 2.2 kW

Output current – 5.1 A

Supply – Three-phase (3PH) 380V ± 15%, 5.8A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-380V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 200 x 140 x 160 mm

Weight – 1 kg

Model SKI780-4D0G-4

Power – 4 kW

Output current – 9A

Supply – Three-phase (3PH) 380V ± 15%, 10A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-380V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 230 x 150 x 155 mm

Weight – 2 kg

Model - LC630-5R5G

Power – 5.5 kW

Output current – 24A

Input voltage – 220V single-phase

Output voltage – 220V, three-phase, 0-500Hz

Installation dimensions – 2 diagonal holes, 106x235mm or DIN rail

Overall dimensions – 110x245x170

Weight – 3.00 kg
