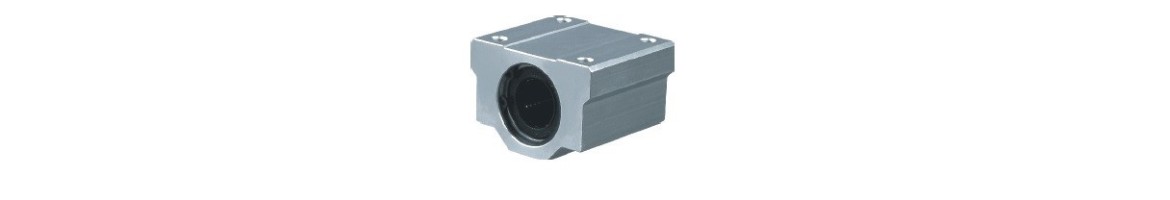

In Bearing Housing

Model – SC8UU

h – 11

D – 17

W – 34

H – 22

G – 18

A – 6

B – 24

E – 5

S1xe – M4 x 8

S2 – 3.4

C – 18

L – 30

Dynamic load – 27 kg

Static load – 39 kg

Weight – 0.052 kg

Model – SC10UU

h – 13

D – 20

W – 40

H – 26

G – 21

A – 8

B – 28

E – 6

S1xe – M5 x 12

S2 – 4.3

C – 21

L – 35

Dynamic load – 37 kg

Static load – 55 kg

Weight – 0.092 kg

Model – SC12UU

h – 15

D – 21

W – 42

H – 28

G – 24

A – 8

B – 30.5

E – 5.75

S1xe – M5 x 12

S2 – 4.3

C – 26

L – 36

Dynamic load – 51 kg

Static load – 78 kg

Weight – 0.102 kg

Model – SC16UU

h – 19

D – 25

W – 50

H – 38.5

G – 32.5

A – 9

B – 36

E – 7

S1xe – M5 x 12

S2 – 4.3

C – 34

L – 44

Dynamic load – 77 kg

Static load – 111 kg

Weight – 0.200 kg

Model – SC25UU

h – 26

D – 38

W – 76

H – 51.5

G – 42

A – 12

B – 54

E – 11

S1xe – M8 x 18

S2 – 7

C – 50

L – 67

Dynamic load – 98 kg

Static load – 157 kg

Weight – 0.600 kg

Model – SC30UU

h – 30

D – 39

W – 78

H – 59.5

G – 49

A – 15

B – 58

E – 10

S1xe – M8 x 18

S2 – 7

C – 58

L – 72

Dynamic load – 157 kg

Static load – 274 kg

Weight – 0.735 kg

Model – SC20UU

h – 21

D – 27

W – 54

H – 41

G – 35

A – 11

B – 40

E – 7

S1xe – M6 x 12

S2 – 5.2

C – 40

L – 50

Dynamic load – 88 kg

Static load – 137 kg

Weight – 0.255 kg
