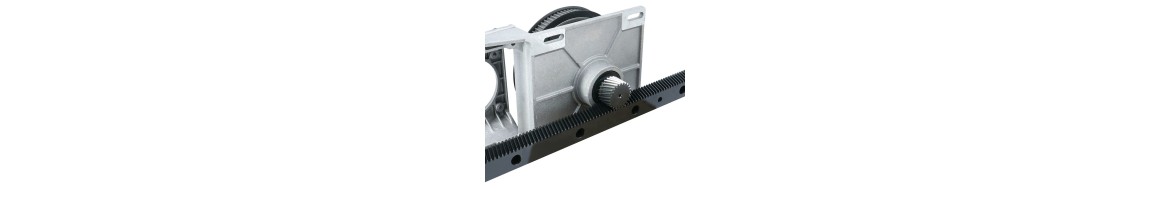

Gear Drives
Subcategories
-
![Blackened CNC M1.5 Gear Rack – 20×20×960 mm, Helical Teeth, Black Coating | HLTNC]()
Helical Gear Rack - Module 1.5 for CNC Machines
€39.84Technical specifications:
Tooth type: Helical (angled)
Module: M1.5
Material: Hardened steel with anti-corrosion coating
Length: 960 mm
Rack width: 20 mm
Rack height: 20 mm
Surface hardness: HRC 45–55
Compatibility: Pinions for module 1.5 / Nema 34 gearboxes
Weight: 2.750 kg.
-
![Reducer for CNC Machines with Rack and Pinion – Module 1.5, 5:1, Nema 34]()
Reducer for CNC Machines with Rack and Pinion – Module 1.5, 5:1, Nema 34
€49.20Technical specifications:
Product type: Belt-driven gear reducer
Gear ratio: 5:1
Tooth type: Helical (angled)
Tooth module: M 1.5
Compatible motor: Nema 34 stepper motor / servo motor
Input shaft: Ø14 mm
Output shaft: Pinion for module 1.5
Housing material: Aluminium alloy (anodised)
Gear material: Hardened steel
Belt type: HTD 5M timing belt
Operating noise: Low (< 60 dB)
Efficiency: Up to 96%
Compatibility: Gear rack + pinion kit
Weight: 1.900 kg
