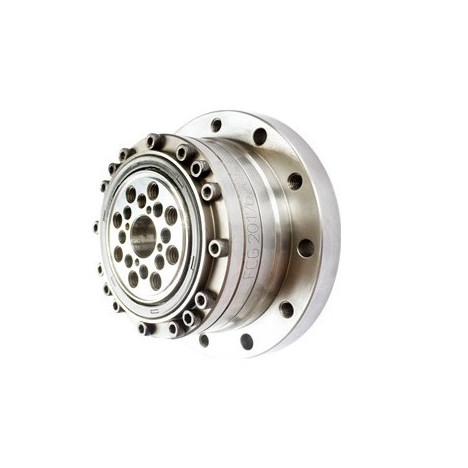

Harmonic Gearbox Model FCG-AJ 25
FCG – AJ series gearboxes, frame size 25.
|
Size |
Gear ratio |
A |
B |
C |
D |
E 1 |
E 2 |
||||
|
Nm |
kgfm |
Nm |
kgfm |
Nm |
kgfm |
Nm |
kgfm |
r/min |
r/min |
||
|
25 |
50 |
51 |
5.2 |
127 |
13 |
72 |
7.3 |
242 |
25 |
5600 |
3500 |
|
80 |
82 |
8.4 |
178 |
18 |
113 |
12 |
232 |
24 |
|||
|
100 |
87 |
8.9 |
204 |
21 |
140 |
14 |
369 |
38 |
|||
|
120 |
87 |
8.9 |
217 |
22 |
140 |
14 |
395 |
40 |
|||
|
160 |
87 |
8.9 |
229 |
23 |
140 |
14 |
408 |
42 |
|||
A - Rated torque
B - Allowable peak load (Start/Stop)
C - Allowable maximum momentary load
D - Values at which loading may occur
E 1 - Maximum wave generator speed with oil lubrication
E 2 - Maximum wave generator speed with grease lubrication
For more detailed information on dimensions, please refer to the Attachments section.
If you are interested in a model that is not currently available, do not hesitate to contact us!
