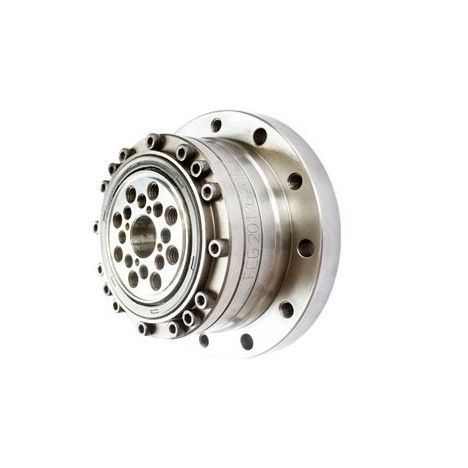

Harmonic Gearbox Model FCG-AJ 50
FCG – AJ series gearboxes, size 50.
|
Size
|
Gear ratio
|
A
|
B
|
C
|
D
|
E 1
|
E 2
|
||||
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
r/min
|
r/min
|
||
|
50 |
80 |
484 |
49 |
1223 |
125 |
675 |
69 |
2418 |
247 |
3500 |
2500 |
|
100 |
611 |
62 |
1274 |
130 |
866 |
88 |
2678 |
273 |
|||
|
120 |
688 |
70 |
1404 |
143 |
1057 |
108 |
2678 |
273 |
|||
|
160 |
688 |
70 |
1534 |
157 |
1096 |
112 |
3185 |
325 |
|||
A - Rated torque
B - Permissible peak load (Start/Stop)
C - Permissible maximum momentary torque load
D - Values at which loading may occur
E 1 - Maximum wave generator speed with oil lubrication
E 2 - Maximum wave generator speed with grease lubrication
For more detailed information on dimensions, please refer to the Attachments section.
If you are interested in a model that is not currently available, do not hesitate to contact us!
