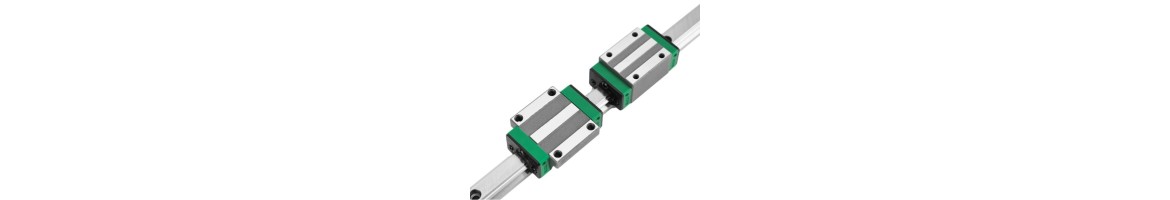

Carriages (blocks)

Grid
List

There are 9 products.

Sort by:

Showing 1-9 of 9 item(s)

Quick view
HGH 15 CA Block - EXHGH15

€12.24

H - 28 L1 - 39.4

H1 - 4.3 L - 61.4

N - 9.5 K1 - 10

W - 34 K2 - 4.85

B - 26 G - 5.3

B1 - 4 T - 6

C - 26 H2 - 7.95

H3 - 7.7

MR - 12.24 kg-m

MP - 1.02 kg-m

MY - 10.2 kg-m

Mounting bolt - M4/16

Basic load rating:

- Dynamic - 1160.44 kg

- Static - 1730.46 kg

Weight - 0.180 kg.
Quick view
HGH 20 CA Block - EXHGH20

€12.60

W - 44 L1 - 50.5

B - 32 T - 8

L - 77.5 K1 - 12.25

H - 30 K2 - 6

B1 - 6 Mxl - M5 x 6

H1 - 4.6 H2 - 6

G - 12 H3 - 6

N - 9.5 C - 36

Mounting bolt - M5/16

Dynamic load: 1.8 tonnes

Static load: 2.8 tonnes

Weight - 0.300 kg.
Quick view
HGH 25 CA Block - EXHGH25

€16.50

W - 48 L1 - 58

B - 35 T - 8

L - 84 K1 - 16

H - 40 K2 - 6

B1 - 6.5 Mxl - M 6x8

H1 - 5.5 H2 - 10

G - 12 H3 - 9

N - 12.5 C - 35

Weight - 0.517 kg.

Mounting bolt - M6/20

Dynamic load: 2.7 tonnes

Static load: 3.7 tonnes
Quick view
HGH 35 CA Block - EXHGH35

€35.76

W - 70 L1 - 80

B - 50 T - 10.2

L - 112.4 K1 - 20.6

H - 55 K2 - 7

B1 - 10 Mxl - M8 x 12

H1 - 7.5 H2 - 16

G - 12 H3 - 19.6

N - 18 C - 50

Mounting bolt - M8/25

Dynamic load: 5 tonnes

Static load: 7 tonnes

Weight - 1.450 kg.
Quick view
HGH 45 CA Block - EXHGH45

€57.12

W - 86 L1 - 97

B - 60 T - 16

L - 139.4 K1 - 23

H - 70 K2 - 10

B1 - 13 Mxl - M10 x 17

H1 - 9.5 H2 - 18.5

G - 12.9 H3 - 30.5

N - 20.5 C - 60

Mounting bolt - M12/35

Dynamic load: 7.9 tonnes

Static load: 10.4 tonnes

Weight - 2.730 kg.
Quick view
HGW 15 CA Block - EXHGW15

€12.84

H - 24 L1 - 39.6

H1 - 4.3 L - 61.4

N - 16 K1 - 8

W - 47 K2 - 4.85

B - 38 G - 5.3

B1 - 4.5 T - 6

C - 30 H2 - 3.95

H3 - 3.7

MR - 12.24 kg/m

MP - 10.20 kg/m

MY - 10.20 kg/m

Mounting bolt - M4/16

Basic load rating:

- Dynamic - 1160.44 kg

- Static - 1730.46 kg

Weight - 0.170 kg
Quick view
HGW 20 CA Block - EXHGW20

€13.44

H - 30 L1 - 50.5

H1 - 4.6 L - 77.5

N - 21.5 K1 - 10.25

W - 63 K2 - 6

B - 53 G - 12

B1 - 5 T - 8

C - 40 H2 - 6

H3 - 6

MR - 27.50 kg/m

MP - 20.40 kg/m

MY - 20.40 kg/m

Mounting bolt - M5/16

Basic load rating:

- Dynamic - 1810 kg

- Static - 2830 kg

Weight - 0.400 kg.
Quick view
HGW 25 CA Block - EXHGW25

€18.00

H - 38 L1 - 58

H1 - 5.5 L - 84

N - 23.5 K1 - 10.7

W - 70 K2 - 6

B - 57 G - 12

B1 - 6.5 T - 8

C - 45 H2 - 6

H3 - 5

MR - 43 kg/m

MP - 33 kg/m

MY - 33 kg/m

Mounting bolt - M6/20

Basic load rating:

- Dynamic - 2700 kg

- Static - 3720 kg

Weight - 0.590 kg.
Quick view
MGN 9 Block - EXMGN9

€12.00

W - 20 N - 5.5

B - 15 L1 - 18.9

L - 28.9 Mxl - M 3x3

H - 10 H2 - 1.8

B1 - 2.5 Gn - Ø 1.4

H1 - 2 C - 10

Weight - 0.020 kg.

Mounting bolt - M3/8

Dynamic load: 0.19 ton

Static load: 0.26 ton
