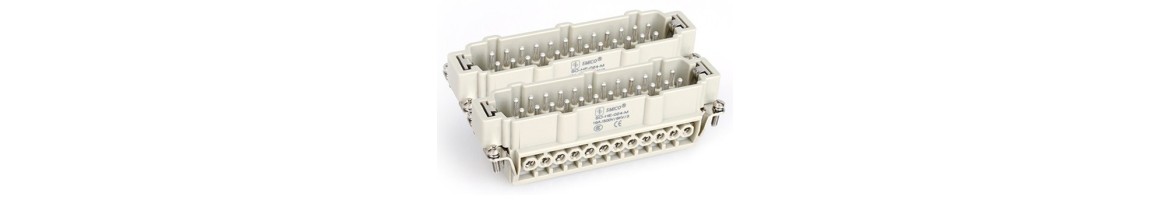

Industrial Connectors

Model: SO-HE-024

Base and cap material: aluminium die-cast

Colour: grey

Connector locking type: steel locking mechanism

Protection rating of locked connector: IP65

Sealing material: NBR

Connection type: screw terminal

Weight: 0.440 kg

Model: SO-HE-024-F

Operating voltage: 600V

Maximum pin current: 16A

Insulation resistance: 10¹⁰ ohms

Insert material: polycarbonate

Operating temperature: from -40 to +125 C

Flammability class according to UL-94: V0

Colour: white

Cable connection type: screw

Weight: 0.125 kg.

Model: SO-HE-048-F

Operating voltage: 600V

Maximum pin current: 16A

Insulation resistance: 10¹⁰ ohms

Insert material: polycarbonate

Operating temperature: from -40 to +125 C

Flammability class according to UL-94: V0

Colour: white

Cable connection type: screw

Weight: 0.250 kg.

Model: SO-HE-048

Base and cap material: aluminium die-cast

Colour: grey

Connector locking type: steel locking mechanism

Protection rating of locked connector: IP65

Sealing material: NBR

Connection type: screw terminal

Weight: 1.300 kg

Model: SO-HE-024-M

Operating voltage: 600V

Maximum pin current: 16A

Insulation resistance: 10¹⁰ ohms

Insert material: polycarbonate

Operating temperature: from -40 to +125 C

Flammability class according to UL-94: V0

Colour: white

Cable connection type: screw

Weight: 0.125 kg.

Model: SO-HE-048-M

Operating voltage: 600V

Maximum pin current: 16A

Insulation resistance: 10¹⁰ ohms

Insert material: polycarbonate

Operating temperature: from -40 to +125 C

Flammability class according to UL-94: V0

Colour: white

Cable connection type: screw

Weight: 0.250 kg.
