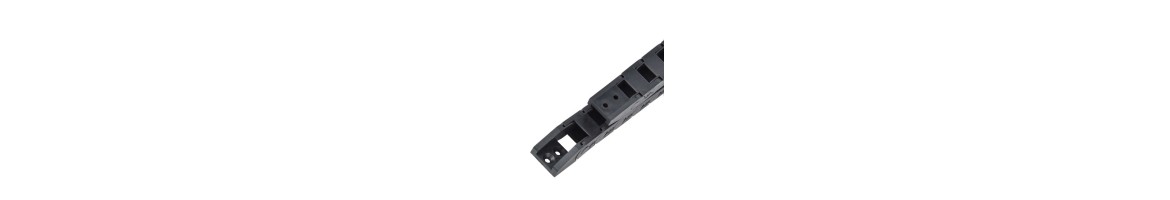

Closed Type
Cable drag chains and systems are used, to guide and protect cables during the movement of industrial and consumer machines. Their design facilitates cable installation and maintenance, and their structure resembles tank tracks, consisting of many joints that can bend. They are wear-resistant and can operate at high speeds. They are widely used in CNC machines, electrical equipment, stone processing machines, plastic cutting, glass and window frame cutting, automated manipulators, and more.
-
![Cable Drag Chain 10x10, Cable Drag Chains, Cable Carriers]()
Cable Drag Chain 10x10 - EXPCC1010CDC
€7.80Model - EXPCC1010CDC
Inner height – 10 mm
Inner width – 10 mm
Outer height – 13.5 mm
Outer width – 17.7 mm
Bending radius – 28 mm
Hole spacing – 8 mm
Type – closed
Tensile strength – 99 MPa
Operating temperature – from - 40℃ to +60℃
Material – PA66
Length – 1 metre
Weight: 0.200 kg.
-
![Cable Drag Chain 10x15, Cable Drag Chains]()
Cable Drag Chain 10x15 - EXPCC1015CDC
€11.40Internal height – 10 mm
Internal width – 15 mm
External height – 15 mm
External width – 23 mm
Bending radius - 28 mm
Distance between holes – 20 mm
Type - closed
Tensile strength: 99 MPa
Operating temperature - from -40℃ to +60℃
Material – PA66
Length – 1 metre
Weight: 0.170 kg
-
![7x7 Cable Drag Chain, Cable Drag Chains, Cable Carriers]()
Cable Drag Chain 7x7 - EXPCC7CDC
€6.00Model - EXPCC8CDC
Inner height – 7 mm
Inner width – 7 mm
Outer height – 10 mm
Outer width – 12.5 mm
Bending radius – 18 mm
Distance between holes – 16.5 mm
Type – closed
Tensile strength – 99 MPa
Operating temperature – from - 40℃ to +60℃
Material – PA66
Length – 1 metre
Weight: 0.100 kg.
-
![8x8 Cable Drag Chain, Cable Drag Chains, Cable Carriers]()
Cable Drag Chain 8x8 - EXPCC8CDC
€6.00Model - EXPCC8CDC
Inner height – 8 mm
Inner width – 8 mm
Outer height – 10.5 mm
Outer width – 14.5 mm
Bending radius – 18 mm
Hole spacing – 15.5 mm
Type – closed
Tensile strength – 99 MPa
Operating temperature – from - 40℃ to +60℃
Material – PA66
Length – 1 metre
Weight: 0.100 kg.
