Spindles and Accessories

In the Spindles and Accessories category, you will find high-quality spindles and accompanying components for CNC machines, automated production systems, and precision machining devices. The spindle is a key element in machining – it ensures the rotation of the tool with high precision, stability, and efficiency. The solutions offered are suitable for both professional industrial applications and CNC hobby projects, ensuring reliable operation, high performance, and a long service life.

We offer reliable and precise solutions that ensure high efficiency, stable operation, and optimal machining results. Our range is selected for both professional industrial applications and technical projects and equipment modernisation.

Grid
List

There are 15 products.

Sort by:

Showing 1-15 of 15 item(s)

Quick view
Spindle Holder Ø80 mm – SC 80

€15.36

Model: SC 80

Inner diameter: Ø 80 mm

Material: Aluminium alloy (6061-T6)

Surface finish: Anodised

Colour: Silver

Mounting type: Split construction with 4 mounting bolts

Fastening: M 8 screws

Base size: 122 x 102 mm

Weight: 0.750 kg.
Quick view
Spindle Motor JGFB47-20-18Z/3.5 – 3.5 kW /Air Cooling/ ER20

€322.08
Quick view
Spindle Motor JGLF71-30-24Z/9 – 9 kW ATC /Air Cooled/

€1,533.60

Model: JGLF71-30-24Z/9

Power: 9.0 kW

Supply: 220/380 V

Current: ~19.5 A / 33.6 A

Speed: 12 000 – 24 000 rpm

Standard: ISO30 / ATC

Cooling: Air-cooled

Maximum torque: ~7.16 Nm

Weight: 31 kg

Изчерпано
Quick view
Spindle Motor JST JGD-80C-2.2 – 2.2 kW / Ø80 mm / Water Cooled

€159.48
Quick view
Three-phase VFD inverter 0.75 kW - 1PH/3PH

€95.76

Model SKI780-0D75G-1

Power – 0.75 kW

Output current – 4 A

Supply – Single-phase (1PH) 220V ± 15%, 8.2A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0-220V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 200 x 140 x 160 mm

Weight – 1 kg
Quick view
Three-phase VFD inverter 0.75 kW - 3PH/3PH

€120.24

Model SKI780-0D75G-4

Power – 0.75 kW

Output current – 2.1 A

Supply – Three-phase (3PH) 380V ± 15%, 3.4A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-380V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 200 x 140 x 160 mm

Weight – 1 kg
Quick view
Three-Phase VFD Inverter 1.5 kW - 1PH/3PH

€132.00

Model SKI780-1D5G-1

Power – 1.5 kW

Output current – 7 A

Supply – Single-phase (1PH) 220V ± 15%, 14A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-220V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 195 x 140 x 160 mm

Weight – 1 kg
Quick view
Three-Phase VFD Inverter 1.5 kW - 3PH/3PH

€150.96

Model SKI780-1D5G-4

Power – 1.5 kW

Output current – 3.8 A

Supply – Three-phase (3PH) 380V ± 15%, 5A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-380V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 195 x 140 x 160 mm

Weight – 1 kg
Quick view
Three-Phase VFD Inverter 2.2 kW - 1PH/3PH

€195.72

Model SKI780-2D2G-1

Power – 2.2 kW

Output current – 9.6 A

Supply – Single-phase (1PH) 220V ± 15%, 23A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-220V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 200 x 140 x 160 mm

Weight – 1 kg
Quick view
Three-phase VFD inverter 2.2 kW - 3PH/3PH

€223.32

Model SKI780-2D2G-4

Power – 2.2 kW

Output current – 5.1 A

Supply – Three-phase (3PH) 380V ± 15%, 5.8A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-380V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 200 x 140 x 160 mm

Weight – 1 kg
Quick view
Three-Phase VFD Inverter 4 kW - 3PH/3PH

€238.80

Model SKI780-4D0G-4

Power – 4 kW

Output current – 9A

Supply – Three-phase (3PH) 380V ± 15%, 10A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-380V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 230 x 150 x 155 mm

Weight – 2 kg
Quick view
Three-phase VFD inverter 5.5 kW - 1PH/3PH

€253.08

Model - LC630-5R5G

Power – 5.5 kW

Output current – 24A

Input voltage – 220V single-phase

Output voltage – 220V, three-phase, 0-500Hz

Installation dimensions – 2 diagonal holes, 106x235mm or DIN rail

Overall dimensions – 110x245x170

Weight – 3.00 kg
Quick view

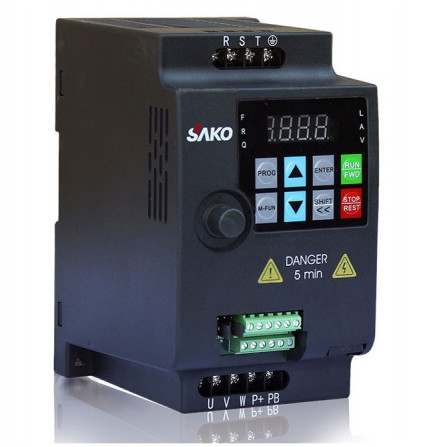

Three-Phase VFD Inverter 5.5 kW - 3PH/3PH

€253.08

Model SKI780-5D5G-4

Power – 5.5 kW

Output current – 13 A

Supply – Three-phase (3PH) 380V ± 15%, 15A, 47Hz-63Hz

Output voltage - Three-phase (3PH) 0V-380V

Output frequency - 0Hz-400Hz

Mounting dimensions – 81 x 61 mm

Overall dimensions – 230 x 150 x 155 mm

Weight – 2 kg
Quick view
Three-Phase VFD Inverter 7.5 kW - 1PH/3PH

€328.80

Model – LC400T-7R5G

Power – 7.5 kW

Output current – 17A

Input voltage – 220V single-phase

Output voltage - 220V, three-phase, 0-500Hz

Installation dimensions – 4 holes 148x236mm or DIN rail

Overall dimensions – 160x250x190

Weight – 4.200 kg
Quick view
Three-phase VFD inverter 7.5 kW - 3PH/3PH

€328.80

Model SKI600-7D5G/011P-4

Power – 7.5 kW

Output current – 17 A

Supply – Three-phase (3PH) 380V ± 15%, 20A/26A, 50Hz-60Hz

Output voltage - Three-phase (3PH) 0V-380V, 17A/25A

Output frequency - 0Hz-3000Hz

Mounting dimensions – 240 x 150 x 175 mm

Overall dimensions – 340 x 250 x 280 mm

Weight – 3.6 kg
