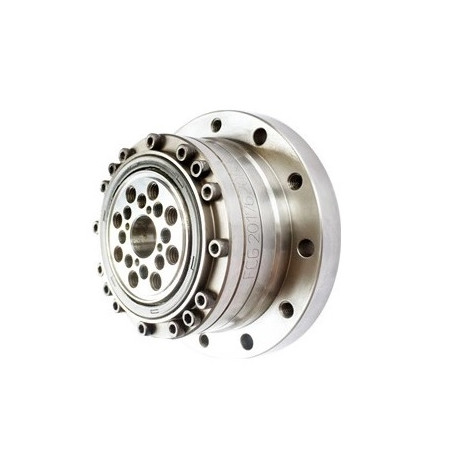

Harmonic Gearbox Model FCG-AJ 20
FCG – AJ series gearboxes, frame size 20.
|
Size
|
Gear ratio
|
A
|
B
|
C
|
D
|
E 1
|
E 2
|
||||
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
Nm
|
kgfm
|
r/min
|
r/min
|
||
|
20 |
50 |
33 |
3.4 |
73 |
7.4 |
44 |
4.5 |
127 |
13 |
6500 |
3500 |
|
80 |
44 |
4.5 |
96 |
9.8 |
61 |
6.2 |
165 |
17 |
|||
|
100 |
52 |
5.3 |
107 |
10.9 |
64 |
6.5 |
191 |
19 |
|||
|
120 |
52 |
5.3 |
113 |
11.5 |
64 |
6.5 |
191 |
19 |
|||
|
160 |
52 |
5.3 |
120 |
12.2 |
64 |
6.5 |
191 |
19 |
|||
A - Rated torque
B - Allowable peak load (Start/Stop)
C - Allowable maximum momentary load
D - Values at which loading may occur
E 1 - Maximum wave generator speed with oil lubrication
E 2 - Maximum wave generator speed with grease lubrication
For more detailed information on dimensions, please refer to the Attachments section.
If you are interested in a model that is not currently available, do not hesitate to contact us!
