The Bluetooth XBee Shield V03 Module provides an easy way to connect 20-pin 2.0mm pitch communication boards to an Arduino-compatible board. Such boards include Bluetooth or XBee boards. Via 2.54mm pitch pin headers, the expansion board connects to an Arduino-compatible board such as Uno, Mega etc. The same headers are extended on the top layer to sockets, to which multiple Arduino expansion boards can be connected – for motors, sensors, etc. In the middle of the expansion board, 2.00mm pitch socket headers are provided, with suitable arrangement for connecting Bluetooth or XBee boards. Bluetooth modules can transmit data to 1 point via a stable protocol. XBee modules can communicate with multiple XBee modules.

Expansion Sensor Shield provides an easy way to connect sensors, servos, and RS485 devices to an Arduino-compatible board. NANO 3.0 connects via female headers (male headers must be soldered onto the NANO 3.0). UNO R3 connects via plated through-holes, onto which female headers are soldered. The purpose of the board is to expand the capability to simultaneously connect multiple devices to the input/output pins. To each input/output pin, power (V) and GND (G) pins are added. The input/output pins are brought out to male headers. The POWER LED indicates whether 5V supply voltage is present.

The Expansion Sensor Shield is powered via a DC connector 5.5 x 2.1mm.

The DC connector input range is 7-12VDC.

Technical Specifications – Fan

Model: DS 12038ABHL / DS9803B1238L22

Type: Axial fan (AC)

Size: 120 × 120 × 38 mm

Power Supply: 220 V AC

Frequency: 50 / 60 Hz

Power: 22 W

Bearing: Ball Bearing

Bearing Life: ~ 40,000 – 50,000 hours

Operating Mode: Continuous

Airflow: ~100 – 120 m³/h

Operating Speed: ~ 2600 - 3100 RPM

Noise Level: ~40 – 47 dB

Housing Material: Aluminium frame

Blade Material: Plastic

Weight: 0.680 kg

Technical Specifications – Filter Panel

Panel Size: 156 × 156 mm

Colour: Grey (RAL7035)

Housing Material: Durable ABS plastic

Filter Material: Washable foam

Protection Rating: IP54

Function: Dust and contaminant filtration + airflow

Technical Specifications – Fan

Model: DS22060ABHL

Type: Axial fan (AC)

Size: 220 × 220 × 60 mm

Power Supply: 220 V AC

Bearing: Ball Bearing

Bearing Life: ~ 40,000 – 50,000 hours

Operating Mode: Continuous

Airflow: ~100 – 120 m³/h

Operating Speed: ~ 2450 RPM

Current Consumption: ~ 0.33 A at 220 V

Operating Temperature: –10°C to +65°C

Airflow: ~ 600–800 m³/h

Power: 50–80 W

Noise Level: ~55 – 69 dB

RPM: ~ 2300 – 2700 RPM

Housing Material: Aluminium frame

Blade Material: Plastic

Weight: 2.05 kg

Technical Specifications – Filter Panel

Panel Size: 254 × 254 mm

Colour: Grey (RAL7035)

Housing Material: Durable ABS plastic

Filter Material: Washable foam

Protection Rating: IP54

Function: Dust and contaminant filtration + airflow

Technical Specifications – Fan

Model: DS8038ABHL

Type: Axial fan (AC)

Size: 80 × 80 × 38 mm

Power Supply: 220 V AC

Frequency: 50 / 60 Hz

Bearing: Ball Bearing

Bearing Life: ~ 40,000 – 50,000 hours

Operating Temperature: ~ –10°C to +65°C

Current Consumption: approx. 0.09–0.14 A

Airflow: ~ 35–80 m³/h

Noise Level: ~26 – 40 dB

Speed: ~ 2000 – 3000 RPM

Housing Material: Aluminium frame

Blade Material: Plastic

Weight: 0.420 kg

Technical Specifications – Filter Panel

Panel Size: 115 × 115 mm

Colour: Grey (RAL7035)

Housing Material: Durable ABS plastic

Filter Material: Washable foam

Protection Rating: IP54

Function: Dust and contaminant filtration + airflow

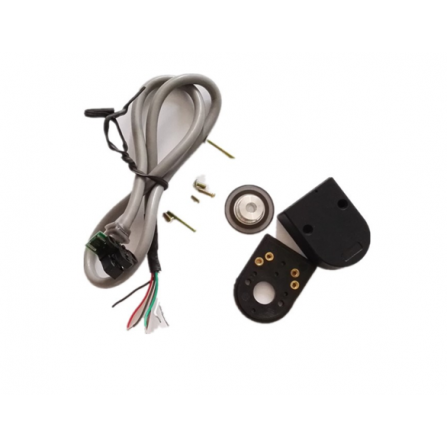

Encoder specifications:

• Product number: PD30-06G1000BST5

• Supply voltage: 5V, up to 65mA

• Output current: 0-5mA

• Recommended operating frequency: 40kHz

• Resolution: 1000

• Output type: voltage (voltage output), square waves

• Number of outputs: A and B (index Z not available)

• Phase shift between A and B: 90 °

• Output – high level: 85% of 5VDC

• Output – low level: <0.3V

• Signal rise time: tr = 200ns

• Signal fall time: tf = 50ns

• Mechanical specifications:
  • Shaft grip diameter: Φ6 mm

  • Maximum speed: 2400rpm

  • Operating temperature: -40-85℃

  • Protection rating: IP50

  • Weight: 50g

  • Dimensions: 41 x 30 x 16.5mm

Model: LJ8A3-2-Z/BX-5V

Inductive sensor NPN, NO – normally open contact

Detection distance: 8mm ±10%

Supply voltage: 6 - 36VDC

Output current: max 200 mA

Size: Ø18 x 68 mm

Thread size: M18

Cable length: 1.1 metres

Wiring:

BROWN: 3 - 36V

BLACK: GND

BLUE: signal

Model: LJ8A3-2-Z/BX-5V

Protection rating: IP67

Detection distance: 2mm +/- 10%

Voltage - 5V

Output current: 20 mA

Response frequency: DC 0.5 kHz, AC 25Hz

Type: Normally Open

Cable length: 1.24 m

Dimensions: 51mm x Ø8

Operating temperature: from -10°C to +70°C

Model: L2100

Device type: Industrial 4G LTE Wi-Fi router

Mobile network: 4G LTE / 3G

SIM card: 1 × SIM slot

Wi-Fi standard: IEEE 802.11 b/g/n

Wi-Fi speed: Up to 300 Mbps

Frequency: 2.4 GHz

Ethernet ports: 1 × WAN, 1 × LAN (10/100 Mbps)

Antennas: External SMA (4G + Wi-Fi)

VPN: Supports VPN (PPTP / L2TP / OpenVPN*)

Security: Firewall, NAT, Port Forwarding

LED indicators: Power, system, Wi-Fi, LAN, WAN, SIM, signal

Power supply: DC 9–36V

Material: Metal casing

Mounting: Wall / DIN rail

Operating temperature: -35°C ~ +75°C

Dimensions: 285 x 195 x 47 mm

Weight: 0.590 kg.

Model: KRONZ UE-05TC

- 5 x RJ45 ports with support for 10/100 Mbps speeds in Full- and Half-Duplex mode.

- Supply voltage DC 12-52 V — ensures great flexibility during installation.

- Power consumption under 3W — economical and energy-efficient.

- MAC address table: 1 K; packet buffer 512 kbit — high performance under heavy load.

- Suitable for DIN rail mounting — ideal for cabinets, control segments, and industrial networks.

- Compact size: 105 x 74 x 30 mm

- Weight 0.360 kg.

Technical specifications:

Series: XB2 (metal series)

Mounting diameter: Ø22 mm

Rated voltage: Up to 660V AC / 440V DC

Rated current: 10A

Contact system: Modular (replaceable NO/NC blocks)

Protection rating: IP40 / IP65 (with protective cover)

Mechanical life: ≥ 1,000,000 cycles

Body material: Metal (chrome-plated zinc) and non-flammable polymer

Certificates: CE, IEC 60947-5-1

Model specifications:

Board specifications:

• Input voltage: Max 36V, screw terminal

• Connector types: screw terminals, multiple pin headers

• Compatibility with UNO R3: Pin headers on the bottom layer of the board

• Compatibility with MEGA2560: Pin headers on the bottom layer of the board

• Driver IC: L293D, 4-channel Half Bridge driver, 1A, DIP16 package

• Communication IC: 74HC595 Shift register

• Servo interface: 2 units, 5 V

• DC motors: 4 units, bidirectional control, 256 speed levels

• Stepper motors: 2 units, unipolar and bipolar

• Buttons: RESET button for easy resetting of the connected microcontroller board

• Dimensions: 58mm x 54mm x 17mm

• Weight: 0.026 kg

Diameter: 12 mm

Beam wavelength: 650 nm

Beam length at a distance of 500 mm from the object: 1300 mm

Supply voltage: 3-5 V

Maximum current: 40 mA

Operating temperature: from -10°C to 40°C

Length: 35 mm

Diameter: 12 mm

Beam wavelength: 650 Nm

Supply voltage: 3-5 V

Maximum current: 40 mA

Operating temperature: from -10°C to 40°C

Length: 35 mm

Technical specifications:

Model: AD22-22DS

Type: LED indicator

Mounting diameter: Ø22 mm

Operating voltage: 220V

Max. voltage: up to 380V

Current consumption: ≤ 20mA

Brightness: ≥ 100cd/m²

LED lifespan: ≥ 30,000 hours

Protection rating: IP65 (dust and splash resistant)

Operating temperature: -25°C to +55°C

Material: Impact-resistant plastic

Colours: Red, Yellow, Blue, White

Weight: 0.020 kg.
