Expansion Board Bluetooth XBee Shield V03 Module - EXBPL

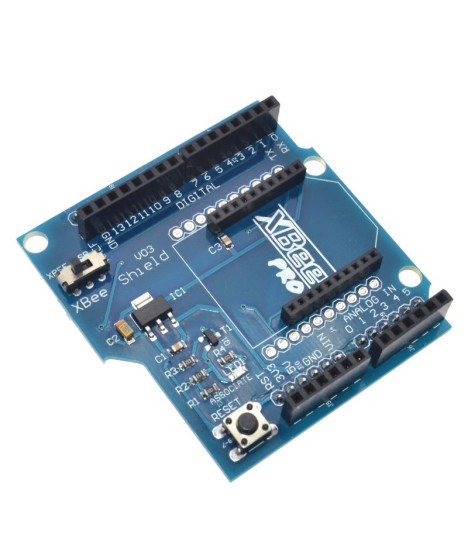

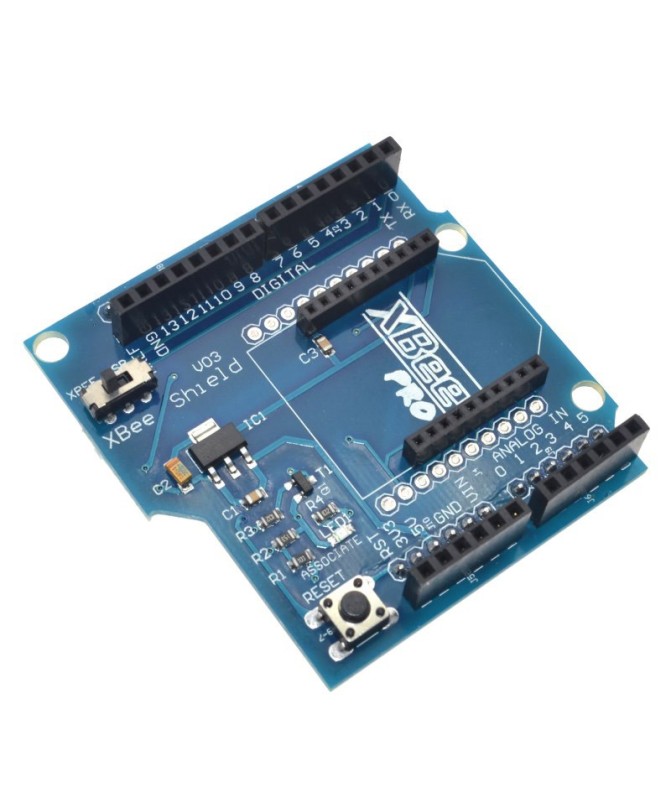

The Bluetooth XBee Shield V03 Module provides an easy way to connect 20-pin 2.0mm pitch communication boards to an Arduino-compatible board. Such boards include Bluetooth or XBee boards. Via 2.54mm pitch pin headers, the expansion board connects to an Arduino-compatible board such as Uno, Mega etc. The same headers are extended on the top layer to sockets, to which multiple Arduino expansion boards can be connected – for motors, sensors, etc. In the middle of the expansion board, 2.00mm pitch socket headers are provided, with suitable arrangement for connecting Bluetooth or XBee boards. Bluetooth modules can transmit data to 1 point via a stable protocol. XBee modules can communicate with multiple XBee modules.
Board specifications:
- Supply voltage – 3.3V or 5V depending on the connected modules
- 2.54mm male pin headers: used to connect an Arduino-compatible board to the Bluetooth XBee Shield V03 Module
- 2.54mm female pin headers: for connecting an additional Arduino expansion board to the Bluetooth XBee Shield V03 Module
- 2mm female pin headers: for connecting Bluetooth or XBee wireless communication modules built on the standard 20-pin x 2.0mm pitch
- Buttons: RESET button for easy resetting of the connected microcontroller board
- Buttons: switch type button for switching communication mode – XBEE/USB
- Dimensions: 58mm x 54mm x 17mm
- Weight: 0.026 kg
