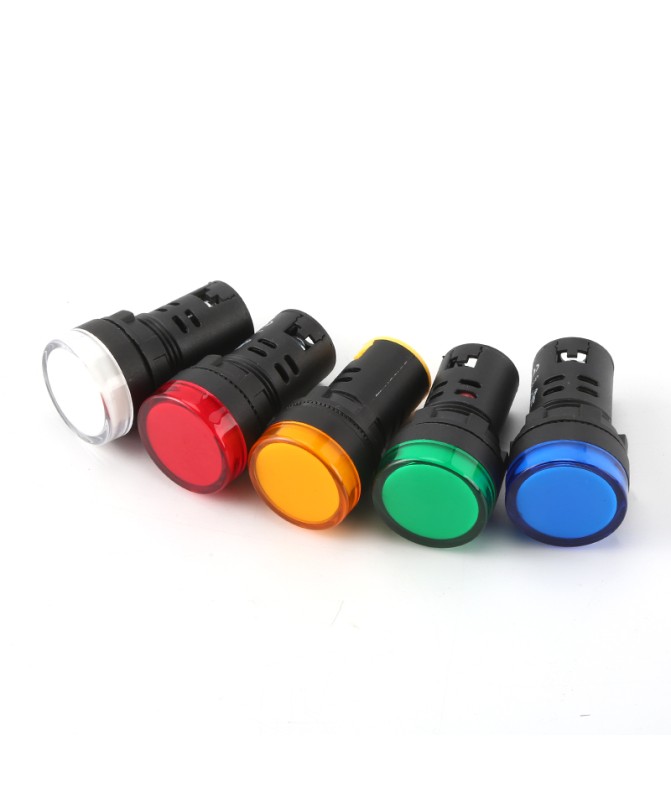

LED Indicator AD22-22D/S – 22mm
Technical specifications:
Model: AD22-22DS
Type: LED indicator
Mounting diameter: Ø22 mm
Operating voltage: 220V
Max. voltage: up to 380V
Current consumption: ≤ 20mA
Brightness: ≥ 100cd/m²
LED lifespan: ≥ 30,000 hours
Protection rating: IP65 (dust and splash resistant)
Operating temperature: -25°C to +55°C
Material: Impact-resistant plastic
Colours: Red, Yellow, Blue, White
Weight: 0.020 kg.
The signal lamps of the AD22 series operate with built-in ultra-bright LEDs, which ensure high visibility even in brightly lit working environments. Unlike old incandescent lamps, LED indicators consume minimal energy, do not heat up, and have a service life ten times longer. The design of the model allows for easy installation, as it is secured by a tightening nut from the rear.
The housing of the AD22-22DS is compact and sealed, making it a reliable choice for industrial machines where there is presence of vibrations, dust or moisture.
✅ Applications:
Electrical panels
Machines and industrial equipment
Automation
Control panels
Status indication (on/off/error)
Energy and telecommunications
✅ Advantages:
High brightness and good visibility
Long life (over 30,000 hours)
Low consumption (LED technology)
Waterproof (IP65)
Easy installation (Ø22 mm standard)
Wide compatibility with panels and boards
