Incremental Motor Encoder – HKT30/PD30 Type

Incremental Motor Encoder – Type HKT30/PD30 - EXME30

Encoder specifications:

  • Product number: PD30-06G1000BST5

  • Supply voltage: 5V, up to 65mA

  • Output current: 0-5mA

  • Recommended operating frequency: 40kHz

  • Resolution: 1000

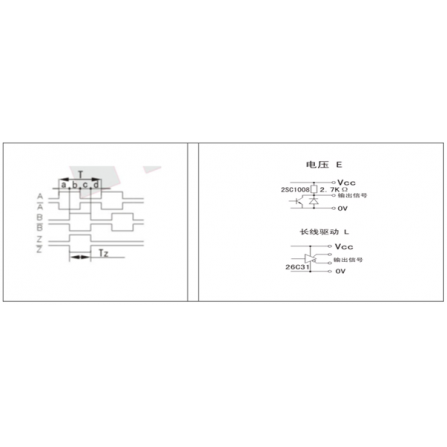

  • Output type: voltage (voltage output), square waves

  • Number of outputs: A and B (index Z not available)

  • Phase shift between A and B: 90 °

  • Output – high level: 85% of 5VDC

  • Output – low level: <0.3V

  • Signal rise time: tr = 200ns

  • Signal fall time: tf = 50ns

  • Mechanical specifications:

    • Shaft grip diameter: Φ6 mm

    • Maximum speed: 2400rpm

    • Operating temperature: -40-85℃

    • Protection rating: IP50

    • Weight: 50g

    • Dimensions: 41 x 30 x 16.5mm

€46.80 pcs
Tax included

HKT30/PD30 is an incremental encoder designed for feedback on motor/gearbox rotation/positioning. The 5V supply voltage combined with voltage outputs on A and B signals makes it suitable for direct interfacing with microcontroller boards. The recommended operating frequency is 40kHz and allows shaft rotation of 2400 revolutions per minute. The working wheel included in the kit has a resolution of 1000, ensuring high precision. The wheel grip diameter is Ø6mm.

The encoder is fitted with wires:

Colour

COLOR

Name

Function

Red

RED

5V

Power 5V, max 65mA

Black

BLACK

GND

Ground

Green

GREEN

A

Signal A

White

WHITE

B

Signal B

Advantages of HKT30/PD30 :

·         Power supply and signal reading are easy due to the presence of voltage outputs.

·         High precision – 1000 steps per revolution of the working wheel

·         Easy installation – mounting the encoder to the housing using fasteners (included in the kit)

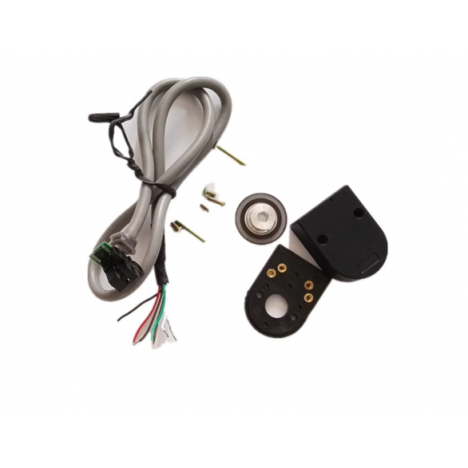

The product is a kit consisting of the following parts:

·         Housing with dimensions: 41 x 30 x 16.5mm

·         Working wheel, inner bore Φ6 mm

·         Incremental encoder with cable

·         Mounting fasteners

datasheet 465,0 KB
