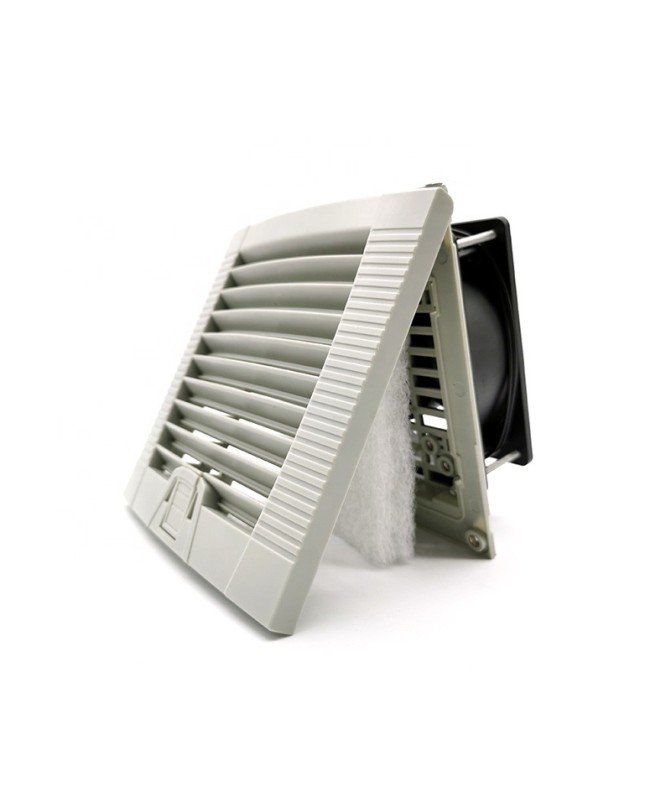

Fan with Filter and Grille 220x220 mm – DS 22060ABHL
Technical Specifications – Fan
Model: DS22060ABHL
Type: Axial fan (AC)
Size: 220 × 220 × 60 mm
Power Supply: 220 V AC
Bearing: Ball Bearing
Bearing Life: ~ 40,000 – 50,000 hours
Operating Mode: Continuous
Airflow: ~100 – 120 m³/h
Operating Speed: ~ 2450 RPM
Current Consumption: ~ 0.33 A at 220 V
Operating Temperature: –10°C to +65°C
Airflow: ~ 600–800 m³/h
Power: 50–80 W
Noise Level: ~55 – 69 dB
RPM: ~ 2300 – 2700 RPM
Housing Material: Aluminium frame
Blade Material: Plastic
Weight: 2.05 kg
Technical Specifications – Filter Panel
Panel Size: 254 × 254 mm
Colour: Grey (RAL7035)
Housing Material: Durable ABS plastic
Filter Material: Washable foam
Protection Rating: IP54
Function: Dust and contaminant filtration + airflow
The DS22060ABHL axial fan is designed for efficient industrial ventilation and cooling of equipment with high thermal loads. Thanks to its large size and powerful motor, it provides a stable airflow during prolonged operation.
Key advantages:
✔ High air flow – suitable for large enclosures
✔ Industrial design with aluminium housing
✔ Long service life (ball bearing)
✔ Stable operation in continuous mode
✔ Suitable for heavy industrial conditions
Applications:
✔ Electrical and control panels
✔ Electronics cooling systems
✔ Industrial automation
✔ CNC machines and inverters
✔ Server and communication cabinets
✔ Power and control modules
✔ Ventilation of industrial and electronic equipment
