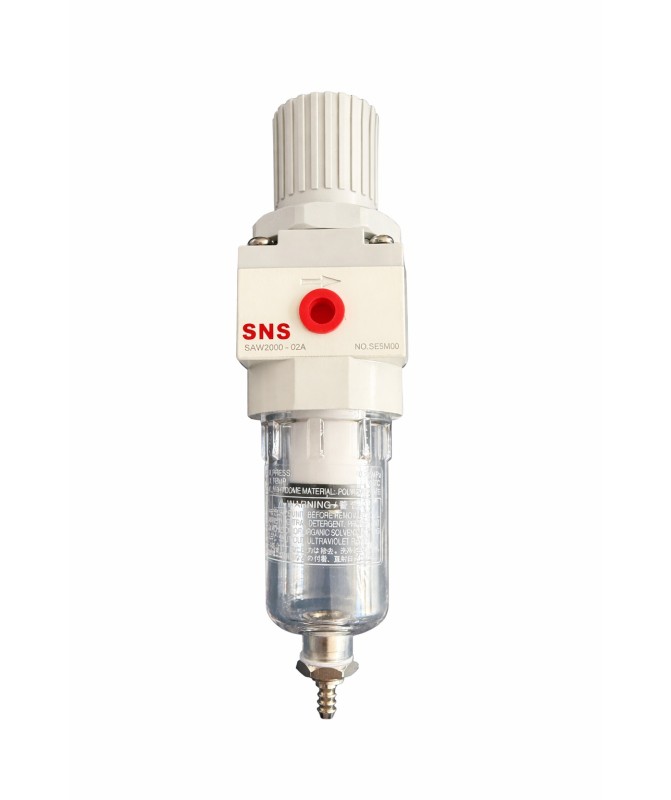

Filter-Regulator SAW2000-02A – Pneumatic FR Unit 1/4″

Pneumatic Filter-Regulator SAW2000-02A (FR)

Model

Caliber

A

B

C

D

E

F

G

H

J

K

L

M

Ø N

P

SAW 2000

PT 1/4

40

163

64

40

47

30

25

42

5.5

8

42

1.6

33.5

40

Technical specifications:

Model: SAW2000-02A

Type: FR (Filter + Regulator)

Connection: PT 1/4

Gauge port: PT 1/8

Operating medium: Compressed air

Operating pressure: 0.05 – 0.85 MPa

Maximum pressure: 1.0 MPa

Filtration: 40 μm standard

Operating temperature: from 5°C to 60°C

Flow rate: approx. 550 L/min

Housing material: Aluminium alloy

Reservoir: Polycarbonate

Pressure gauge: included

Weight: 0.360 kg.

€20.40 pcs
Tax included

SAW2000-02A is a combined pneumatic unit for compressed air preparation, which combines an air filter and a pressure regulator in a compact device. It removes moisture and contaminants from the air and provides stable pressure to pneumatic tools and equipment.

The device is part of the SNS SAW series, which is distinguished by its compact design, easy installation, and reliable operation in industrial conditions.

Key advantages:

✔ Filters moisture and contaminants from the air

✔ Stabilises working pressure

✔ Compact design – saves space

✔ Built-in pressure gauge for easy control

✔ Reliable operation in industrial environments

✔ Suitable for compressors and pneumatic systems

Applications:

✔ CNC machines and automation

✔ Compressor installations

✔ Pneumatic tools

✔ Production lines

✔ Workshops and service centres
