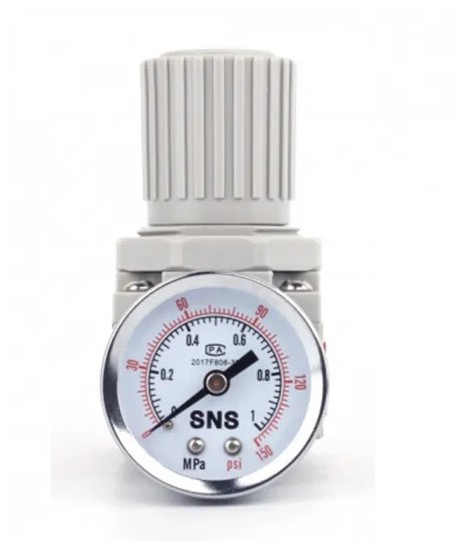

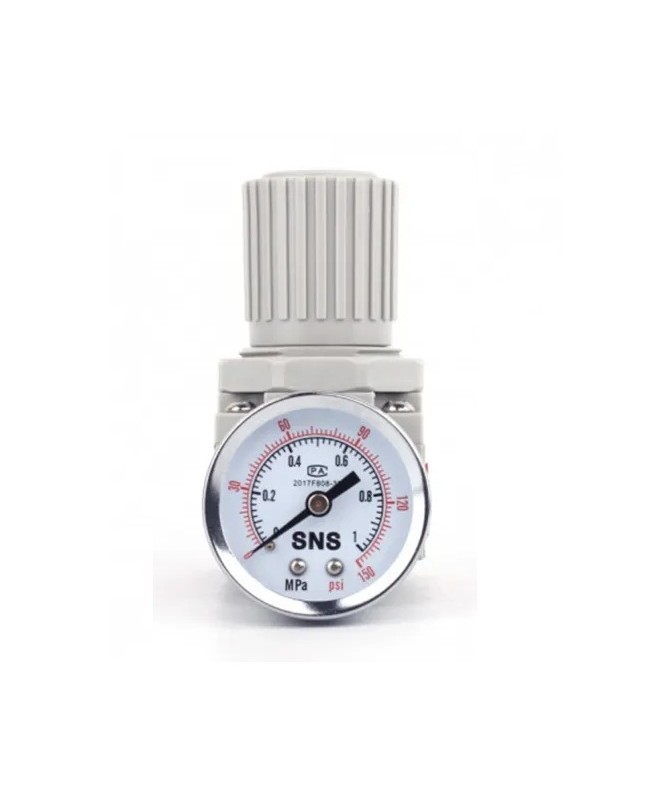

Pneumatic Regulator SAR2000-02
|
Model
|
Caliber
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
Ø N
|
|
SAR 2000
|
PT 1/4 |
40 |
80 |
16 |
40 |
47 |
30 |
25 |
39 |
5.4 |
8 |
40 |
1.6 |
33.5 |
Technical specifications:
Model: SAR2000-02
Series: SAR (Relief type air pressure regulator)
Connection: PT 1/4
Gauge port: PT 1/8
Operating pressure: 0.05 – 0.85 MPa
Maximum pressure: 1 MPa
Operating temperature: from 5°C to 60°C
Operating medium: Compressed air
Body: Aluminium alloy
Flow rate: approx. 550 L/min (at 0.7 MPa)
Weight: 0.280 kg.
SAR2000-02 is a high-quality pneumatic pressure regulator designed to ensure stable and precise regulation of air pressure in pneumatic systems. The regulator operates on compressed air and offers easy adjustment, good sealing, and reliable performance across a wide range of applications.
Key advantages:
✔ Reliable air pressure regulation
✔ Compact and robust housing
✔ Suitable for pneumatic lines and compressors
✔ Easy adjustment with rotary knob
✔ Good choice for CNC machines, automation, and factory systems
Applications:
✔ Pneumatic tools
✔ Compressor systems
✔ Production machinery
✔ Automated lines
✔ Laboratory air lines
