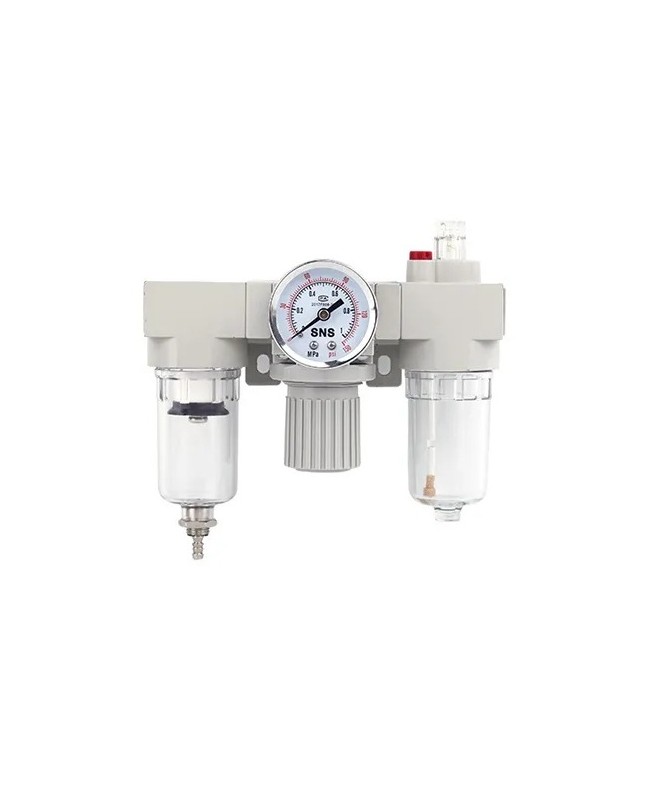

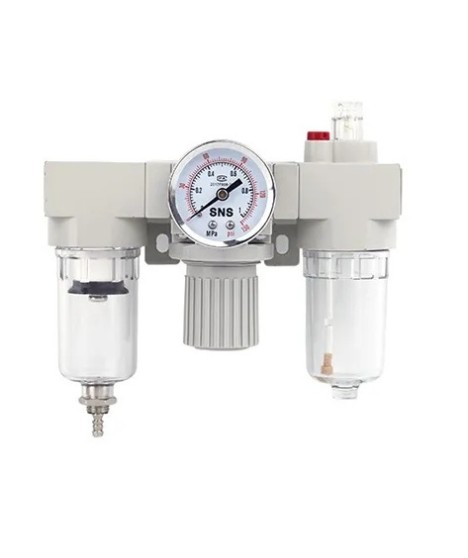

Pneumatic FRL Block for Compressed Air Preparation, SAC2000 Series
|
Model
|
Caliber
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
|
SAC 2000
|
PT 1/4 |
140 |
134 |
36 |
40 |
50 |
34 |
50 |
24 |
5 |
8 |
4.5 |
55 |
Technical specifications:
Models: SAC2000-02 / SAC2000-02A
Operating medium: Compressed air
Connection: PT 1/4″
Gauge port: PT 1/8
Operating pressure: 0.05 – 0.85 MPa
Maximum pressure: 1.0 MPa
Temperature range: from 5°C to 60°C
Construction: Metal housing + transparent bowl
Mounting: Wall-mounted or directly in pneumatic line
Weight: 0.640 kg.
👉 SAC-2000-02 (FR)
FR – filter + regulator (without lubricator)
Function: cleaning + pressure regulation
Suitable for: basic pneumatic systems where lubrication is not required
👉 SAC-2000-02A (FRL)
FRL – filter + regulator + lubricator
Function: cleaning + regulation + lubrication
Ideal for: pneumatic tools, cylinders, valves that require lubrication for longer life
👉 FRL is an abbreviation for:
F — Filter — cleaning air of moisture and solid particles
R — Regulator — stabilising operating pressure
L — Lubricator — dosing oil into the pneumatic air
SAC series FRL kits are integrated modules for preparing compressed air — they filter, regulate pressure, and lubricate the air before it reaches pneumatic tools, cylinders, or other components. These air preparation units provide cleaner, optimally regulated, and lubricated air, which extends equipment life and improves system stability.
Models SAC-2000-02 and SAC-2000-02A are suitable for a wide range of industrial and service applications, including CNC, automation, assembly, and production lines.
Key advantages:
✔ Removes water, oil, and solid particles from the air
✔ Stabilises pneumatic pressure
✔ Regulates operating pressure for optimal performance
✔ Lubricates the air (in FRL units) for longer life of cylinders and tools
✔ Reduces wear and damage
✔ Improves the performance of pneumatic systems
Applications:
✔ CNC milling machines, routers, lathes
✔ Production and automated lines
✔ Compressor installations
✔ Pneumatic tools and cylinders
✔ Robotics and service workshops
