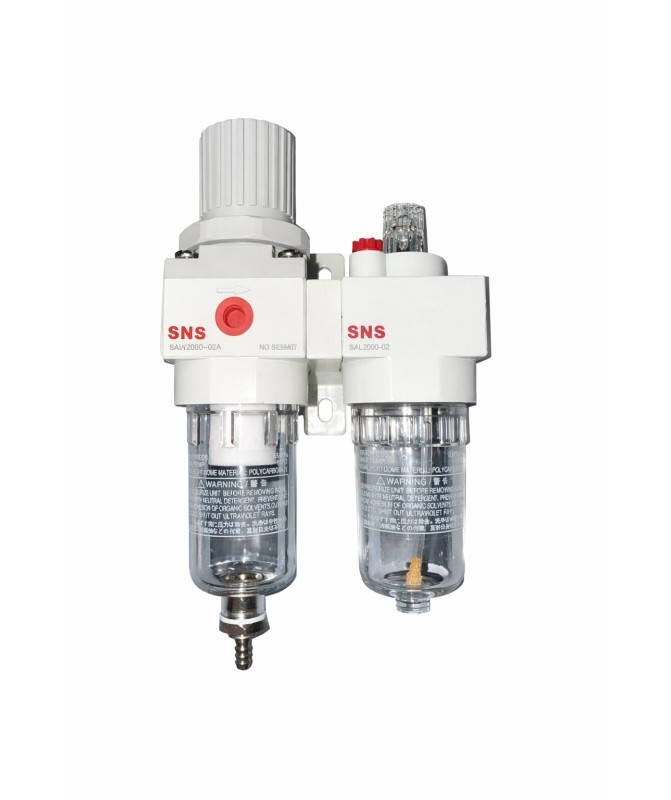

Pneumatic FRL Block for Compressed Air Preparation, Series SAC2010-02A
|
Model
|
Caliber
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
|
SAC 2010
|
PT 1/4 |
91 |
162.5 |
64 |
40 |
47 |
34 |
46 |
24 |
5.3 |
8.2 |
4.5 |
54 |
Technical Specifications:
Model: SAC2010-02A
Operating Medium: Compressed Air
Connection: PT 1/4″
Gauge Port: PT 1/8
Operating Pressure: 0.05 – 0.85 MPa
Maximum Pressure: 1.0 MPa
Temperature Range: 5°C to 60°C
Construction: Metal Housing + Transparent Reservoir
Mounting: Wall or Directly in Pneumatic Line
Weight: 0.520 kg.
SAC2010-02A is a combined pneumatic preparation unit for compressed air (FRL), designed for industrial applications, CNC machines, compressor systems, and pneumatic tools.
The model combines three main functions into one compact and reliable device:
Filtration of air from moisture and particles
Regulation of operating pressure
Lubrication of pneumatic components
Key advantages:
✔ Complete preparation of compressed air
✔ Extends the life of pneumatic tools
✔ Reduces the risk of damage and corrosion
✔ Stabilises pressure in the system
✔ Suitable for industrial loads
✔ Compact and reliable construction
Applications:
✔ CNC machines and automation
✔ Pneumatic cylinders and valves
✔ Air tools
✔ Compressor systems
✔ Production lines
