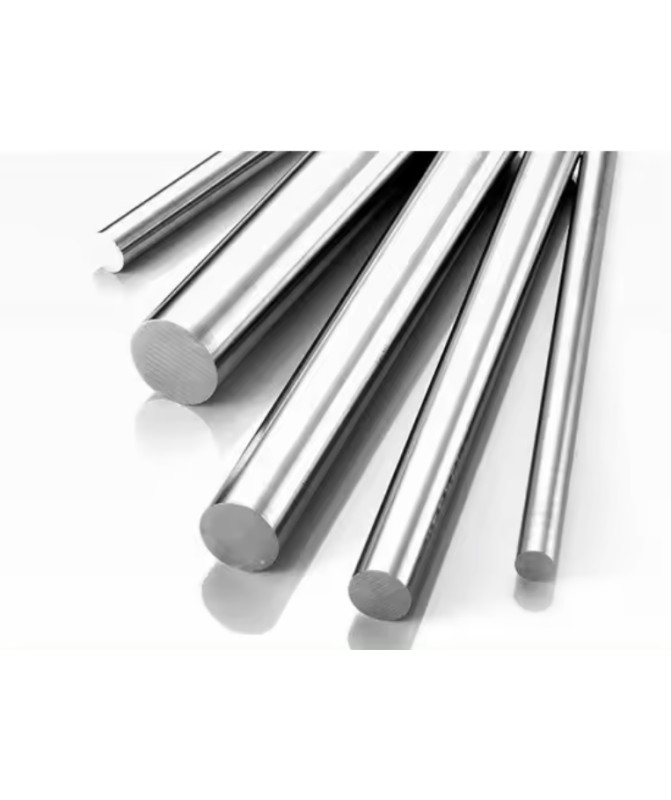

Guide for Linear Bearings F16
Model: F16
Outer diameter: 16mm
Accuracy tolerance:
- g6: from -0.006 to -0.017
- h6: from 0 to -0.011
Depth of hardened layer: 0.8 to 2.0
Material: high-quality steel S45C
Hardness: HRC 58-60
Maximum length: 4m
Approximate weight per 1 meter: 1.580kg
Cutting accuracy: ≤ 1 mm
Rails under 20 cm are not cut!
Linear guide rails and carriages are bearing components for linear motion, designed to provide free movement in one direction. They are designed with precise tolerances and withstand heavy loads, making them an ideal choice for applications where precise positioning of moving elements is required.
