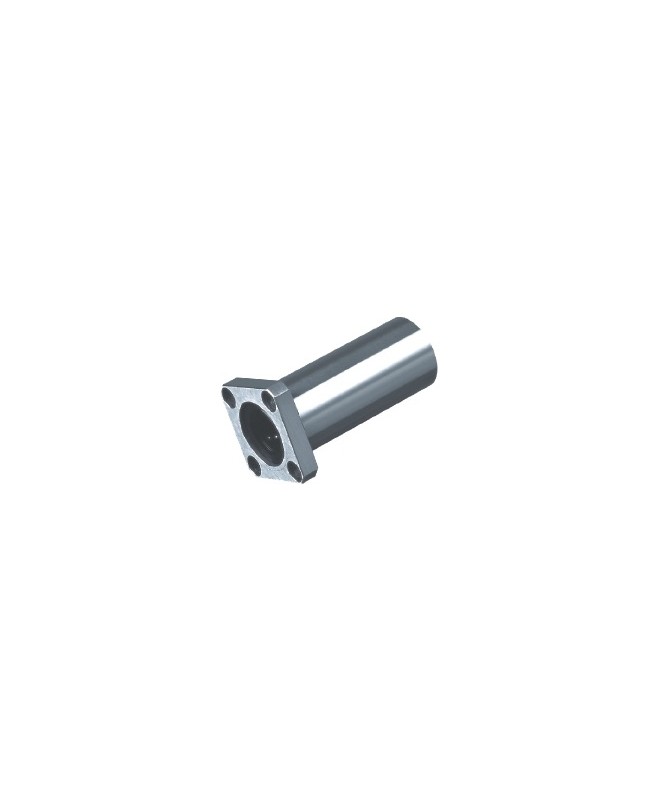

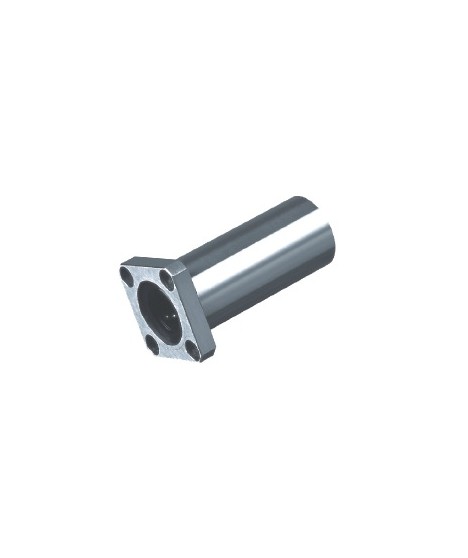

LMK16L Double-Length Linear Bearing - EXLMK16
Model – LMK16L
Ball rows – 4
dr – 16
D – 28
L – 70
D1 – 48
H – 6
PCD – 38
K – 37
W – 34
A – 31
d1 x d2 x h – 4.5 x 7.5 x 4.1
Eccentricity (max) – 15
Radial clearance (max): -6
Dynamic load – 125 kg
Static load – 239 kg
Weight – 0.190 kg
LMK L series bearings are cylindrical plain bearings with double length and a flange, making them easy to mount and install. This type of bearing is used for the precise control of linear movements in engineering and manufacturing processes, due to their reliability and ease of installation. LMK series bearings are known for their compactness and high precision.
Key features:
Material :
- The bearing housing is made of high-quality steel, and the inner bearing can be made of bronze, steel, or another material with anti-friction properties.
Shape and design :
- The bearing has a cylindrical shape with an external flange at one end.
- The flange has mounting holes, which facilitates fixing the bearing to the surface.
Application :
- Widely used in various mechanical systems such as machine tools, robots, and other industrial equipment.
- Ideal for applications requiring precise positioning and stable operation.
Dimensions :
- Available in various sizes to meet the specific requirements of the application. Dimensions may vary by inner diameter, outer diameter, and flange thickness.
Advantages :
- Double length
- Easy to install thanks to the flange.
- High wear resistance and durability.
- Ensures stable and smooth operation with minimal friction.
Maintenance :
- Requires periodic lubrication depending on the material and operating conditions.
- Easy access for inspection and replacement.
