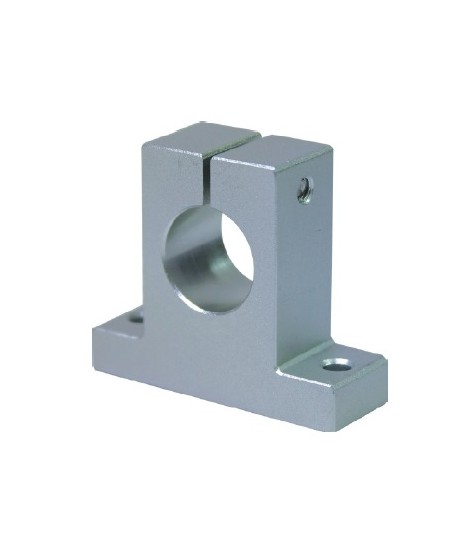

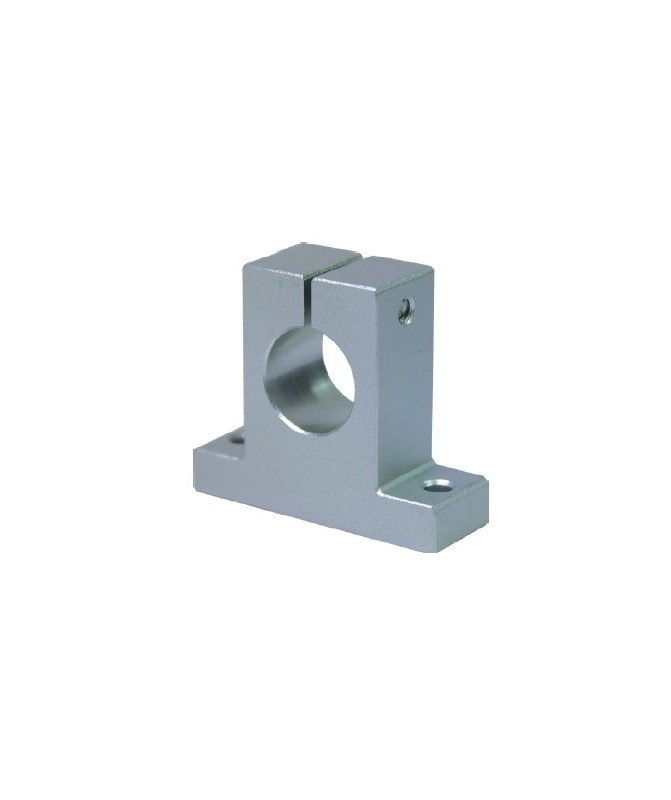

Horizontal Shaft Support - SK16 - EXVSK16

Model – SK16

Diameter – 16 mm

h – 27

G – 24

A – 48

B – 16

C – 44

E – 8

F – 25

R – 38

S – 5

T – 5.5

Locking bolt – M 4

Mounting bolt – M 5

Weight – 0.040 kg

€1.80 pcs
Tax included

The SK-type vertical support is a mechanical component used for mounting and supporting a shaft in various mechanisms and machines. Such supports are typically used in linear guides and systems, providing reliable and stable shaft fixation, which is necessary for precise movement and operation of the mechanism.

Key features:

  1. Material: Aluminium for strength and durability.

  2. Design: Includes mounting holes for base installation and a shaft hole.

  3. Application: Used in machine tools, automated systems, 3D printers, and other devices where precise linear motion is required.

These supports ensure stable shaft operation by minimising vibrations and ensuring precise movement of the mechanism.
