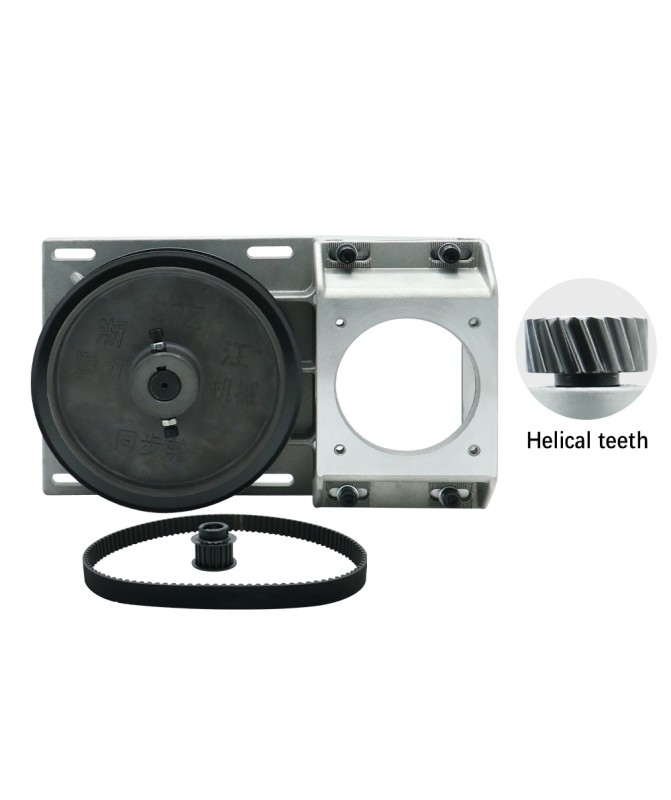

Reducer for CNC Machines with Rack and Pinion – Module 1.5, 5:1, Nema 34

Technical specifications:

Product type: Belt-driven gear reducer

Gear ratio: 5:1

Tooth type: Helical (angled)

Tooth module: M 1.5

Compatible motor: Nema 34 stepper motor / servo motor

Input shaft: Ø14 mm

Output shaft: Pinion for module 1.5

Housing material: Aluminium alloy (anodised)

Gear material: Hardened steel

Belt type: HTD 5M timing belt

Operating noise: Low (< 60 dB)

Efficiency: Up to 96%

Compatibility: Gear rack + pinion kit

Weight: 1.900 kg

€49.20 pcs

Tax included

High-quality gear reducer designed for precision CNC applications. The model ensures smooth and stable movement thanks to helical gears, which reduce noise and vibrations during operation.

The reducer is compatible with Nema 34 type motors and is easy and secure to mount. The housing is made of durable aluminium alloy, and the gears are made of hardened steel, ensuring reliability and a long service life.

With a gear ratio of 5:1, this model offers an excellent balance between speed and torque, making it an ideal choice for CNC routers, milling machines, and other automated machinery.

Advantages:

High positioning accuracy

Precision operation and low noise

Durability and long component life

Easy installation on standard Nema 34 motors

Suitable for industrial CNC routers, plasma and woodworking machines

Applications:

CNC machines and routers

Automated and robotic systems

Precision linear drives

Mechanical and industrial installations

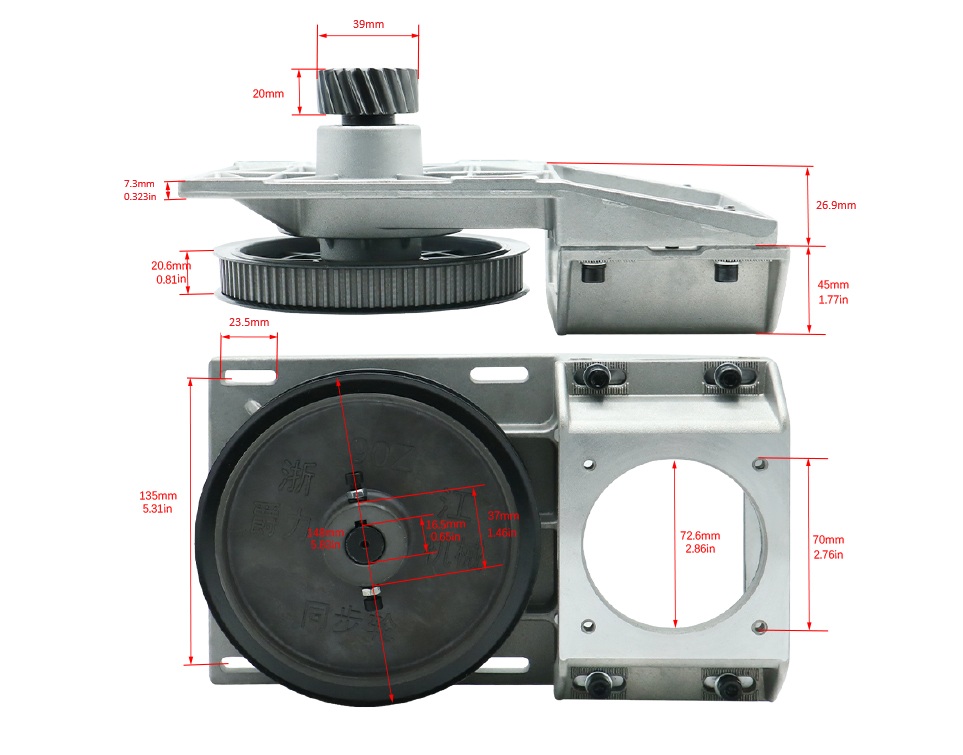

Чертеж 123,0 KB
