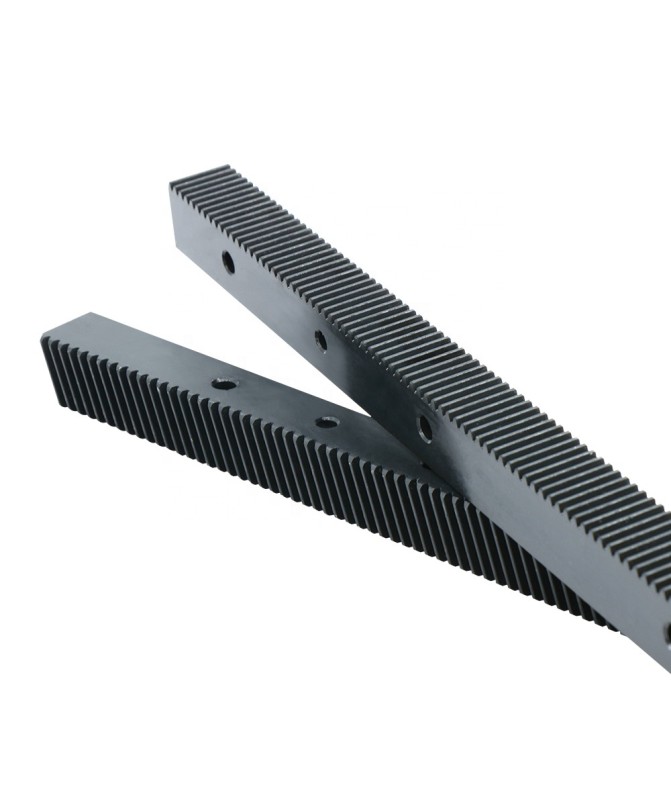

Helical Gear Rack - Module 1.5 for CNC Machines
Technical specifications:
Tooth type: Helical (angled)
Module: M1.5
Material: Hardened steel with anti-corrosion coating
Length: 960 mm
Rack width: 20 mm
Rack height: 20 mm
Surface hardness: HRC 45–55
Compatibility: Pinions for module 1.5 / Nema 34 gearboxes
Weight: 2.750 kg.
The rack is designed for precise linear motion in CNC machines and automated systems. It is used in conjunction with Nema 34 Gearbox reducers and pinions, ensuring smooth and accurate movement of the X and Y axes.
Made from high-quality hardened steel with precisely ground helical teeth, it ensures low noise, minimal backlash, and exceptional positioning accuracy. The surface is hardened and corrosion-resistant treated for long-lasting protection and durability under intensive operation.
Installation is facilitated by pre-positioned holes with a spacing of 180 mm, allowing stable fixation on frames and metal structures.
Advantages:
High precision and minimal backlash
Smooth and quiet operation thanks to helical teeth
Exceptional wear resistance and stability
Easy installation and maintenance
Suitable for professional CNC applications
Applications:
CNC routers and mills
Laser and plasma machines
Robotics and automation
Linear drive systems
