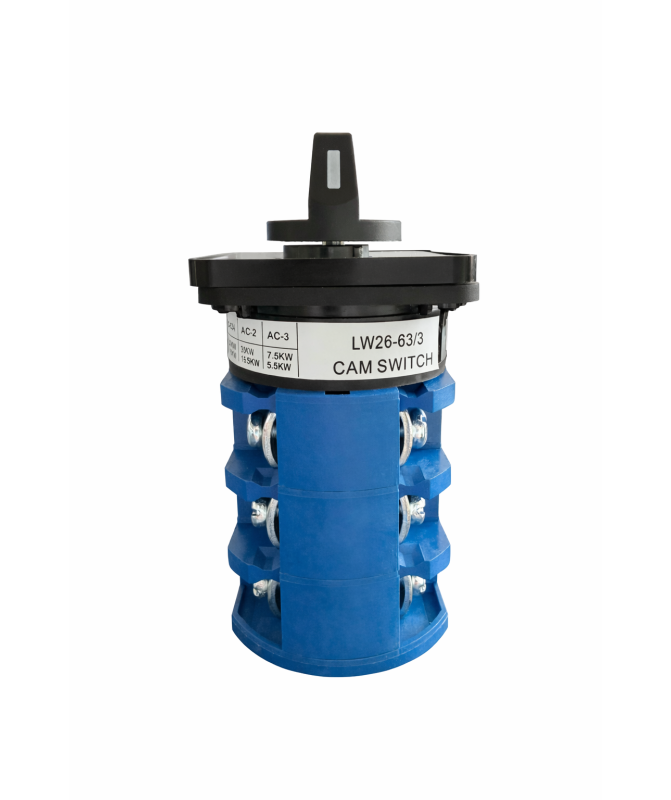

LW26-63/3 Rotary Cam Switch – 63A
|
Model
|
Overall dimensions |
Mounting dimensions |
||||||
|
A
|
B
|
C
|
L
|
a
|
b
|
d1
|
d2
|
|
|
LW 26-63/3 |
64 |
64 |
66 |
95 |
48 |
48 |
3.06 |
10 |
Technical specifications:
Model: LW26-63/3
Type: Rotary switch
Rated current: 63A
Poles: 3 (3-phase)
Voltage: up to 690V
Positions: 0-1-2
Mounting: Panel
Material: High temperature and load resistant
Standard: IEC 60947-3
Weight: 0.450 kg.
The LW26-63/3 rotary switch is a professional solution for controlling and switching high-load electrical circuits. Designed for industrial use, it ensures reliable operation in electrical panels, machines, and automated systems.
With a rated current of 63A and support for three-phase systems, this model is suitable for heavy-duty applications and long-term operation.
✅ Applications:
Electrical panels
Three-phase motor control
Industrial machinery
Automation systems
Mode switching
✅ Advantages:
High rated current – 63A
Suitable for three-phase systems
Robust and reliable construction
Long service life
Easy installation and maintenance
For higher loads
