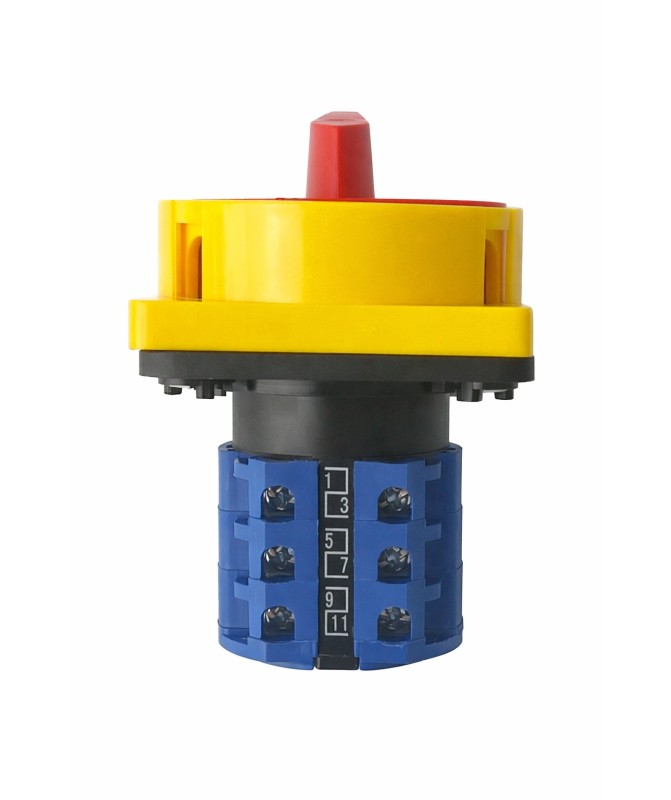

YMW26-20/3GS Rotary Isolator Switch
Technical specifications:
Model: YMW26-20/3GS
Type: Rotary switch (Cam switch)
Rated current: 20A
Rated voltage: up to 690V AC
Number of poles: 3 (3P)
Positions: 2 (ON/OFF)
Contacts: silver contacts (high conductivity)
Mounting: panel mounting
Control: manual, rotary selector
Locking: yes (with padlock - safety lock)
Material: heat-resistant plastic + metal contacts
Panel size: 65 × 65 mm
Mounting hole: ~64 mm
Shape: square
Weight: 0.170 kg.
YMW26-20/3GS is an industrial rotary switch designed for controlling and switching electrical circuits. It is part of the LW26 / YMW26 series, widely used in mechanical engineering, electrical panels, and automation.
The switch has 3 poles and 2 positions (ON/OFF) and allows reliable switching on/off or switching of loads, including electric motors.What does the model mean?
YMW26 → series of cam switches
20 → rated current 20A
3 → 3 poles
GS → version with locking (padlock)
Key advantages:
✔ Reliable switching of electrical circuits
✔ Locking capability (safety during operation)
✔ Suitable for motor control
✔ High durability and long service life
✔ Compact and robust construction
✔ Easy installation in panels
Applications:
✔Electrical panels
✔CNC machines
✔Control of three-phase motors
✔Industrial machinery
✔Compressors and equipment
✔Automated systems
The LW26/YMW26 series is widely used for control, switching, and protection of electrical circuits in industrial applications.
